| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,750 pcs
|
3750 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Dimensions | |
| Halogen Free | |
| Mounting Type | |
| Rated Current | |
| SVHC Present |

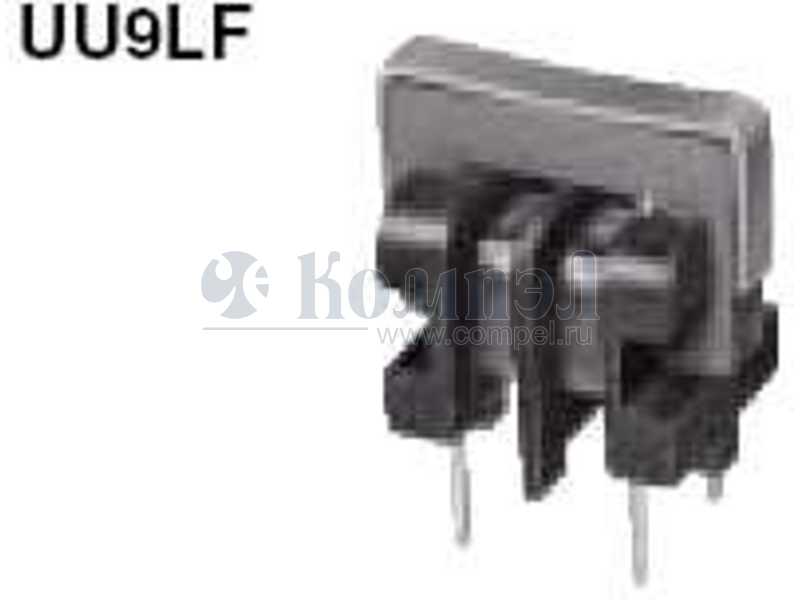

The Sumida UU9LF-B222 is a common mode choke from the UU Series, designed for effective AC line noise suppression. It features a common mode inductance of 2.2 mH and a differential mode inductance of 50 µH, with a rated current of 500 mA.
This component is suitable for AC-DC applications and is designed for PIN mounting, making it a through-hole device. Its compact dimensions of 16.5 x 11 x 16.5 mm allow for integration into various electronic devices.
Ideally used in applications such as multi-function telephones, AC adapters, fax machines, small fluorescent lights, VCRs, and TVs, the UU9LF-B222 acts as an AC line common mode choke to filter out unwanted noise. The standard package quantity is 100 units.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The common mode inductance is 2.2 mH.
The rated current is 500 mA.
The dimensions are 16.5 x 11 x 16.5 mm.
It is mounted using PIN through-hole technology.
It filters AC current.
