| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | 813 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Size | |
| Contact Type | |
| Fastening Type | |
| Housing Color | |
| Ingress Protection | |
| Mechanical Endurance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Orientation | |
| Salt Spray Resistance | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Type |

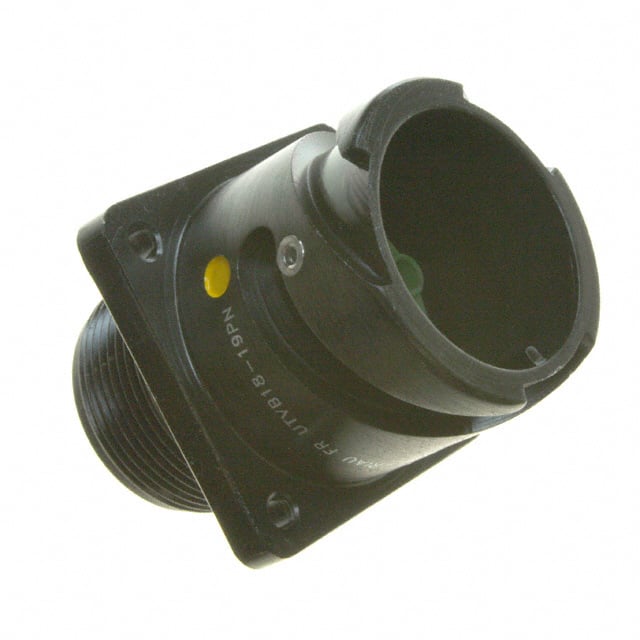

The UTVB18-19PN is a circular connector receptacle housing from Souriau-Sunbank by Eaton's UTV series. It is designed for use with male pins and features 10 contact positions in shell size 18-19. The housing is constructed from aluminum alloy with a zinc cobalt finish and black housing color, providing robust mechanical protection.
Mounting is panel mount with a flange, secured by a reverse bayonet lock. The connector orientation is N (normal). It is unshielded and accepts crimp contacts of size 16. The housing is rated for 500 mating cycles and offers 500 hours of salt spray resistance.
Environmental sealing is rated IP67, IP68, and IP69K, making it dust tight and waterproof for demanding applications. The housing is intermountable with VG 95234 standard connectors.
The UTVB18-19PN has 10 positions.
It is panel mount with a flange.
IP67, IP68, and IP69K — dust tight, water resistant, and waterproof.
It accepts crimp contacts of size 16.
Aluminum alloy shell with zinc cobalt finish, black housing color.
Reverse bayonet lock.
500 mating cycles.
