| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating (Amps) | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating |

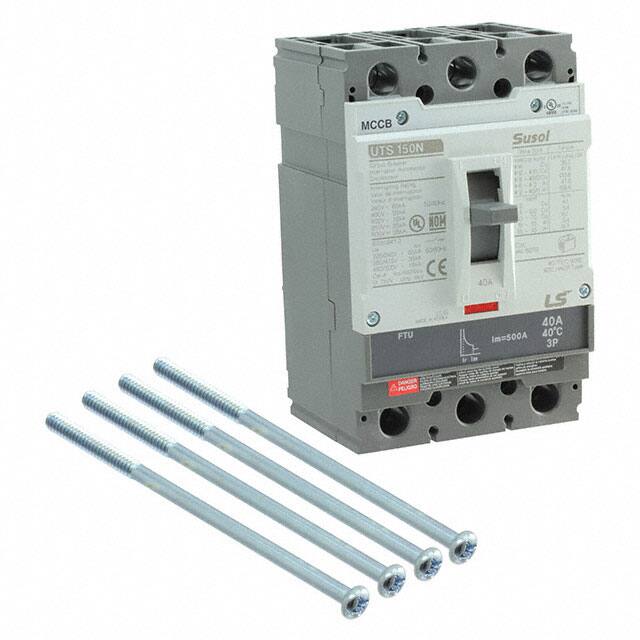

This UTS150N-FTU-40A-3P-LL-UL is a molded case circuit breaker from American Electrical Inc. It is a 3-pole unit with a current rating of 40 Amps and a voltage rating of 600V AC/DC. The breaker utilizes a thermal magnetic trip mechanism and has a frame size of 150A.
Key electrical specifications include a 40A current rating and a 35 kArms interrupt capacity at 480Vac. The unit is designed for panel mounting and features a lever actuator. It is approved by cULus and meets UL489 standards.
This circuit breaker is suitable for use on UL508 control panels as a main breaker and for branch and feeder circuit protection. It is supplied with line and load side lugs and is suitable for reverse feeding. Field installable modules such as auxiliary and alarm switches, shunt trip, and undervoltage release modules are available separately.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 40 Amps.
The voltage rating is 600V.
It has 3 poles.
It uses a thermal magnetic trip mechanism.
The interrupt capacity is 35 kArms at 480Vac.
The frame size is 150A.
