| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating (Amps) | |
| Mounting Type | |
| Number of Poles | |
| Termination | |
| Voltage Rating |

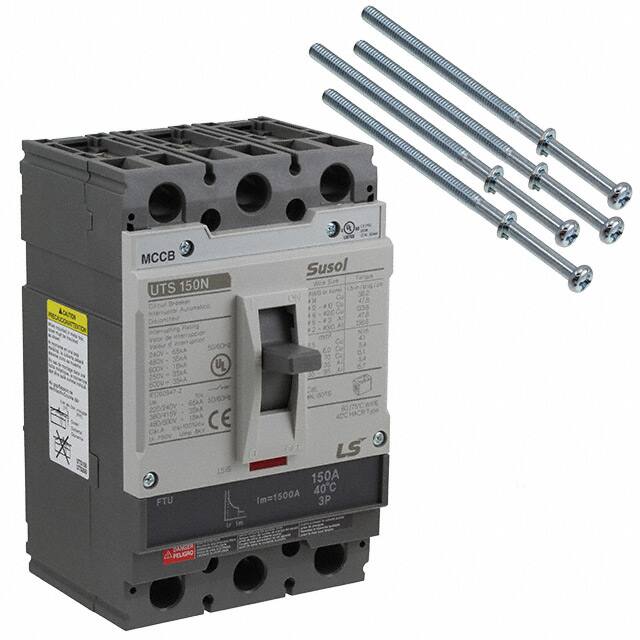

This American Electrical Inc. UTS150N-FTU-150A-3P-LL-UL is a molded case circuit breaker designed for reliable circuit protection. It operates with a current rating of 150A and a voltage rating of 600V AC/DC, featuring a thermal magnetic trip mechanism for overcurrent protection.
The breaker is configured with three poles, providing three-phase circuit interruption capabilities. It is designed for panel mounting, ensuring secure installation in electrical enclosures. The termination style uses lugs, suitable for connecting standard wiring.
Key electrical specifications include a 150A current rating and a 600V voltage rating for both AC and DC applications. The interrupting capacity is rated at 35 kA. Mechanical specifications include a torque rating of 133.6 in·lb and support for wire sizes ranging from 8 to 2/0 AWG.
Compliance information indicates RoHS3 compliance, an MSL of 1 Unlimited, and REACH Unaffected status. The unit of measure for weight is grams, with a total weight of 1790g.
The current rating is 150A.
The voltage rating is 600V AC/DC.
It has 3 poles.
It uses a Thermal Magnetic trip type.
The mounting type is Panel Mount.
The interrupting capacity is 35 kA.
The torque specification is 133.6 in·lb.
