| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Size | |
| Contact Type | |
| Fastening Type | |
| Housing Color | |
| Material Flammability Rating | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Orientation | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Type |

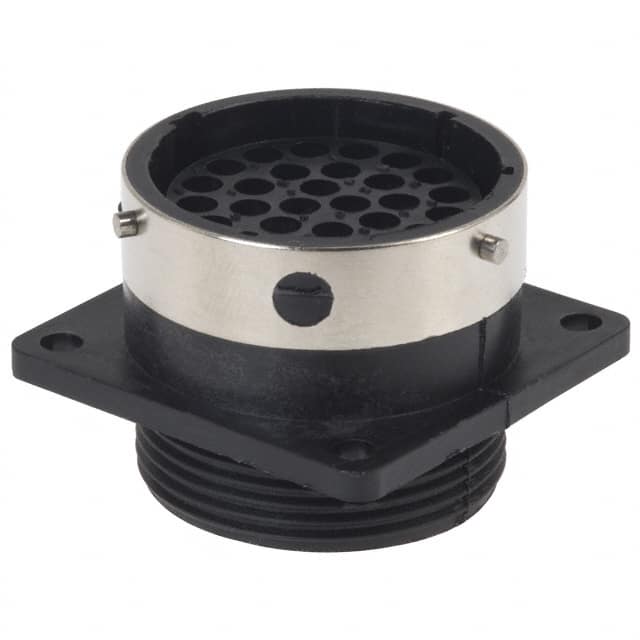

The UTG020-28S is a circular connector receptacle housing designed for use with female crimp contacts. It accommodates 28 positions with contact size #16, arranged in shell size 20-28. The housing features a panel mount with flange and a bayonet locking mechanism that provides an audible click upon secure mating. The shell is constructed from glass-filled polyester, offering a UL94 V-0 flammability rating, and is available in black and silver. The orientation is normal (N), and the housing is unshielded. It accepts crimp termination contacts and is part of the UTG series, which is intermateable and interchangeable with UTO, UTP, and UTS series connectors. The UTG series provides a lightweight, robust solution with metal coupling for demanding applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $15.94 | $15.94 |
| 10+ | $13.85 | $13.85 |
| 20+ | $13.16 | $13.16 |
| 50+ | $12.89 | $12.89 |
| 100+ | $10.94 | $10.94 |
| 200+ | $10.73 | $10.73 |
| 500+ | $10.36 | $10.36 |
| 1,000+ | $9.91 | $9.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
28 positions.
Panel mount with flange.
Shell size 20-28.
Contact size #16.
Bayonet lock.
Glass-filled polyester with UL94 V-0 rating.
No, it is unshielded.
