| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
76 pcs
|
76 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Size | |
| Contact Type | |
| Fastening Type | |
| Housing Color | |
| Material Flammability Rating | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Orientation | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Type |

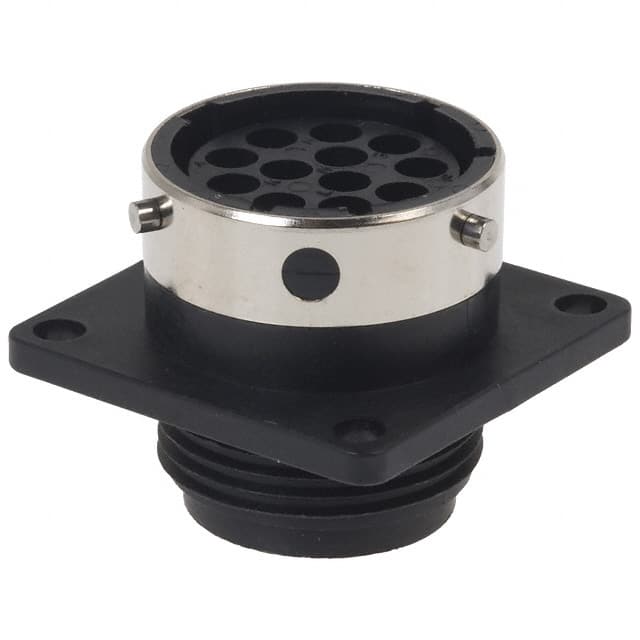

The Souriau-Sunbank by Eaton UTG014-12S is a circular connector receptacle housing designed for use with female socket contacts. It is part of the UTG series, which provides a lightweight and robust plastic circular connector with a metal bayonet locking mechanism. The housing has 12 positions and accepts size 16 AWG crimp contacts from the Trim Trio contact family.
This receptacle housing is designed for panel mounting and includes a flange for secure attachment. The shell is made from glass-filled polyester and has a UL94 V-0 flammability rating. The housing is available in black and silver colors and is unshielded. The bayonet lock provides rapid and secure locking with an audible click.
The UTG series is intermateable and interchangeable with UTO, UTP, and UTS series connectors. This housing is suitable for applications requiring a reliable and economical circular connector interface.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.36 | $10.36 |
| 10+ | $8.80 | $8.80 |
| 50+ | $8.24 | $8.24 |
| 100+ | $7.47 | $7.47 |
| 250+ | $7.01 | $7.01 |
| 500+ | $6.67 | $6.67 |
| 1,000+ | $6.35 | $6.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The UTG014-12S has 12 positions.
This housing uses panel mounting with a flange.
The shell is made of glass-filled polyester and has a UL94 V-0 flammability rating.
It accepts size 16 AWG crimp contacts.
It uses a bayonet lock fastening type.
