| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Mounting Type | |
| Number of Poles | |
| Termination | |
| Torque | |
| Voltage Rating | |
| Weight |

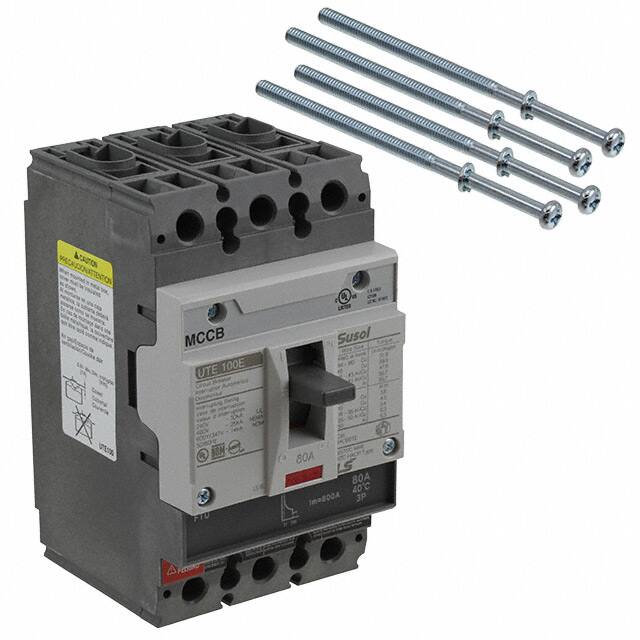

This American Electrical Inc. UTE100E-FTU-80-3P-LL-UL is a molded case circuit breaker (MCCB) designed for reliable circuit protection. It operates with a thermal magnetic trip type and is rated for 80 Amperes and 600 Volts AC, with a DC voltage rating of 500 Vdc.
The breaker features three poles, providing three-phase protection. It is designed for panel mounting and utilizes lug terminations for secure connections. The interrupting capacity is rated at 25 kA.
Additional specifications include a torque rating of 47.8 in·lb and support for wire sizes ranging from 6 to 3 AWG. The unit weighs 1006 g.
Compliance information indicates RoHS3, REACH Unaffected, and MSL 1 status, though these are noted with low confidence due to unverified data.
The current rating is 80A.
The AC voltage rating is 600V.
It has 3 poles.
It uses a Thermal Magnetic trip type.
The interrupting capacity is 25 kA.
The torque specification is 47.8 in·lb.
Wire sizes from 6 to 3 AWG are supported.
