| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Mounting Type | |
| Number of Poles | |
| Termination | |
| Torque | |
| Voltage Rating | |
| Weight |

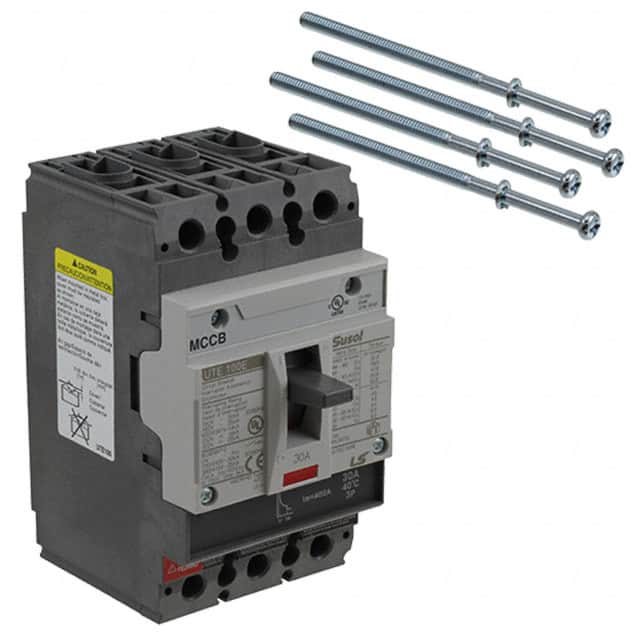

This American Electrical Inc. UTE100E-FTU-30-3P-LL-UL is a molded case circuit breaker (MCCB) designed for reliable circuit protection. It features a thermal magnetic trip mechanism and is rated for 30 Amps and 600 Volts AC, with a DC voltage rating of 500 Vdc.
The breaker has three poles, providing protection for multiple circuits. It is designed for panel mounting and utilizes lugs for termination, compatible with wire sizes from 14 to 10 AWG. The interrupting capacity is 25 kA.
This component is compliant with UL489 standards and carries cULus approval. It is also noted as RoHS3 Compliant, REACH Unaffected, and has an MSL of 1 Unlimited. The breaker has a torque specification of 31.9 in·lb and weighs 1006 g.
The current rating is 30A.
The AC voltage rating is 600V.
It has 3 poles.
It is a Thermal Magnetic breaker.
The mounting type is Panel Mount.
The DC voltage rating is 500 Vdc.
The interrupting capacity is 25 kA.
