| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Industrial Grade | |
| Mounting Type | |
| Number of Poles | |
| Termination | |
| Torque | |
| Voltage Rating |

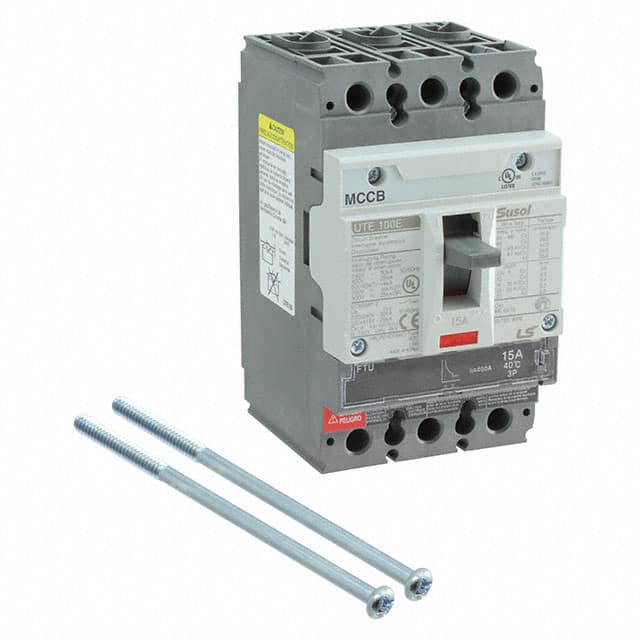

The UTE100E-FTU-15-3P-LL-UL from American Electrical Inc. is a molded case circuit breaker (MCCB) designed for reliable circuit protection. This unit has a 3-pole configuration and operates with a thermal magnetic trip mechanism.
Key electrical specifications include a current rating of 15A and an AC voltage rating of 600V, with a DC voltage rating of 500Vdc. The interrupting capacity is rated at 25 kA. It is designed for panel mounting and utilizes lug terminations.
This circuit breaker is suitable for applications requiring robust protection and meets cULus and UL489 approval standards. The torque specification for connections is 31.9 in·lb, and it accommodates wire sizes from 14 to 10 AWG.
The current rating is 15 A.
It supports 600 VAC and 500 VDC.
It has 3 poles.
The interrupting capacity is 25 kA.
Wire sizes from 14 to 10 AWG are compatible.
It is panel mounted with lug terminals.
It is approved by cULus and UL489.
