| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | 2008 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Size | |
| Contact Type | |
| Durability | |
| Fastening Type | |
| Features | |
| Housing Color | |
| Industrial Grade | |
| Ingress Protection | |
| Insulation Resistance | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Salt Spray Resistance | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Shielding Effectiveness | |
| Test Potential | |
| Type |

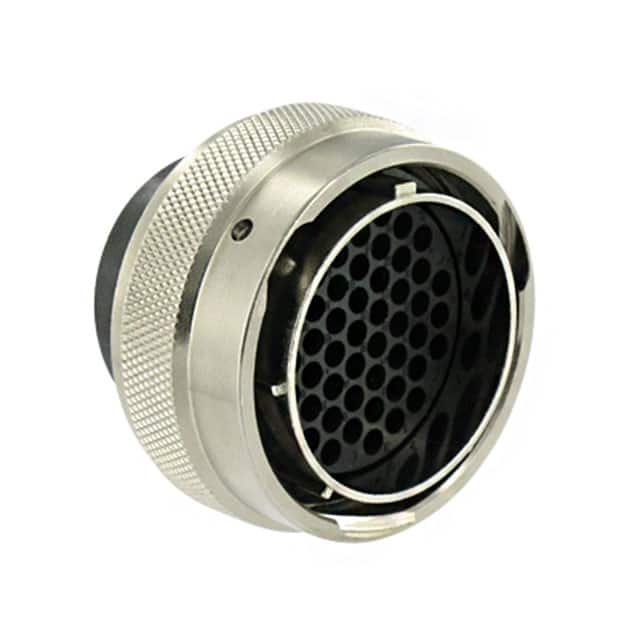

The UT0W62255PH is a 55-position circular plug housing from the UT0W series by Souriau-Sunbank by Eaton. Designed for use with male pins, this free-hanging (in-line) housing features a zinc alloy shell with a nickel finish and a bayonet lock coupling mechanism. It is shielded for EMC protection and includes a coupling nut.
This housing is rated for an operating temperature range of -40°C to +105°C and provides IP67/IP69K ingress protection when mated with a sealed backshell. It offers a minimum insulation resistance of 5000 MΩ and a test potential of 1500 VAC. The housing is rated for 500 mating cycles and provides 65 dB of shielding effectiveness at 10 MHz.
The insert is made from glass-filled thermoplastic with a UL94 V-0 flammability rating. The standard salt spray resistance is 48 hours. This component is RoHS and REACH compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $52.78 | $52.78 |
| 10+ | $44.85 | $44.85 |
| 25+ | $42.64 | $42.64 |
| 50+ | $41.26 | $41.26 |
| 100+ | $39.88 | $39.88 |
| 250+ | $37.68 | $37.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-40°C to +105°C.
IP67/IP69K when mated with a sealed backshell.
55 positions.
Bayonet lock.
Zinc alloy shell with a nickel finish.
Yes, it is shielded and provides 65 dB of shielding effectiveness at 10 MHz.
UL94 V-0.
