| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Size | |
| Contact Type | |
| Durability | |
| Fastening Type | |
| Features | |
| Housing Color | |
| Industrial Grade | |
| Ingress Protection | |
| Insulation Resistance | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Salt Spray Resistance | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Shielding Effectiveness | |
| Test Potential | |
| Type |

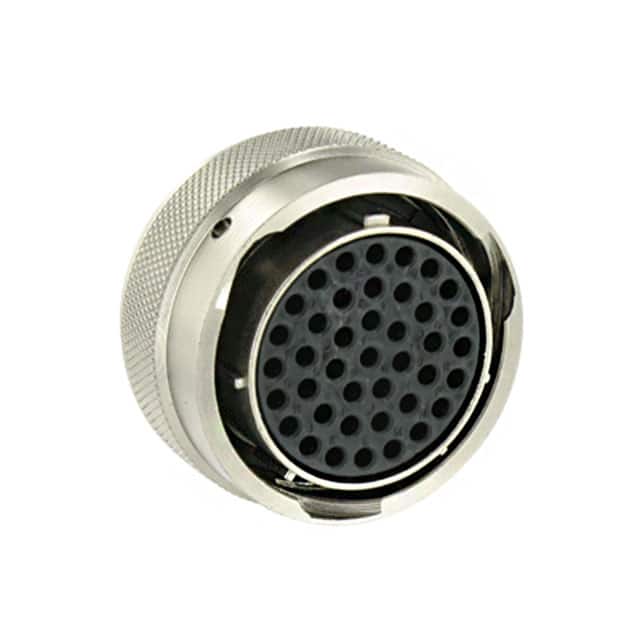

The UT0W62041SH is a plug housing from the UT0W series of high-density metal circular connectors by Souriau-Sunbank by Eaton. It accommodates 41 female contacts of size 20 with crimp termination. The housing features a shell size of 20-41, free hanging (in-line) mounting, and a bayonet lock with an audible positive click. It is shielded with a coupling nut and provides shielding effectiveness of 65 dB at 10 MHz.
Environmental protection includes IP67/IP69K ratings when mated with a sealed backshell, operating temperature range of -40°C to +105°C, and salt spray resistance of 48 hours (standard version). The shell is made of zinc alloy with a nickel finish, and the housing color is silver. The insert material is glass-filled thermoplastic with a flammability rating of UL94 V-0.
This connector is suitable for industrial and outdoor applications requiring high-density interconnects with robust sealing and EMC performance. It is designed for use with female crimp contacts (not included) and offers 500 mating cycles durability.
| Qty | Low | High |
|---|---|---|
| 25+ | $46.78 | $46.78 |
| 50+ | $45.21 | $45.21 |
| 100+ | $42.72 | $42.72 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
41 positions.
Free hanging (in-line) mounting.
IP67/IP69K - dust tight, water resistant, waterproof.
-40°C to +105°C.
Female sockets, size 20, with crimp termination.
Zinc alloy shell with nickel finish.
Yes, with shielding effectiveness of 65 dB at 10 MHz.
