| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
59 pcs
|
59 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Size | |
| Contact Type | |
| Durability | |
| Fastening Type | |
| Housing Color | |
| Ingress Protection | |
| Insulation Resistance | |
| Material Flammability Rating | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Salt Spray Resistance | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Shielding Effectiveness | |
| Termination Style | |
| Test Potential | |
| Type |

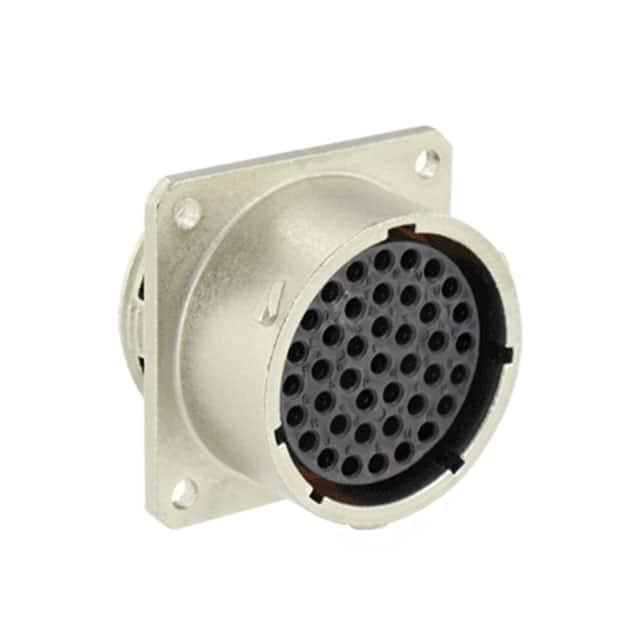

The UT0W02041SH6 is a high density metal circular connector receptacle housing from the UT0W series by Souriau-Sunbank by Eaton. It is designed for use with female crimp sockets and accommodates 41 positions with contact size 20. The housing features a zinc alloy shell with a nickel finish and a silver color.
This receptacle housing is panel mounted with a flange and secured with a bayonet lock. It is shielded for EMC requirements and offers an N (normal) orientation. The insert material is glass-filled thermoplastic with a UL94 V-0 flammability rating.
The UT0W02041SH6 is rated for operating temperatures from -40°C to +105°C. It provides IP68 and IP69K ingress protection in mated condition with a sealed back shell, making it suitable for demanding indoor and outdoor applications. The housing is designed for 500 mating cycles and offers 48 hours of salt spray resistance.
| Qty | Low | High |
|---|---|---|
| 1+ | $31.96 | $31.96 |
| 10+ | $27.16 | $27.16 |
| 25+ | $25.46 | $25.46 |
| 50+ | $24.32 | $24.32 |
| 100+ | $23.51 | $23.51 |
| 250+ | $22.21 | $22.21 |
| 500+ | $21.57 | $21.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Panel mount with flange.
IP68 and IP69K in mated condition with sealed back shell.
41 positions.
-40°C to +105°C.
Zinc alloy shell with nickel finish.
Bayonet lock.
UL94 V-0.
