Mfr Part #:

UT014AC

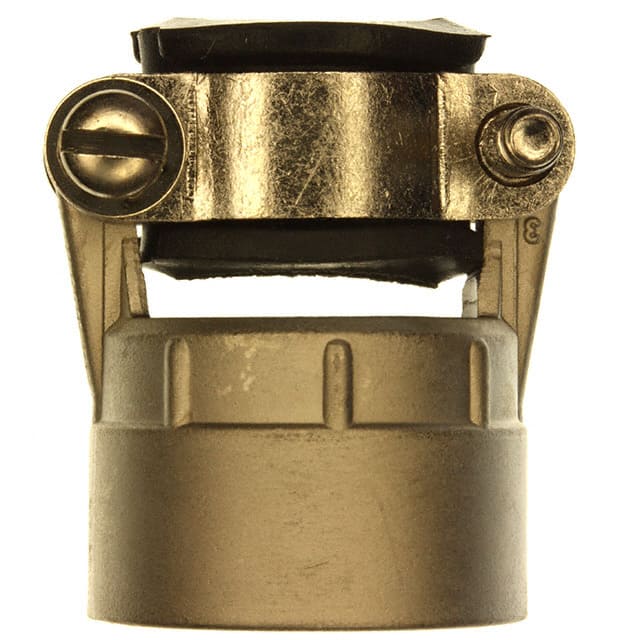

Backshell with cable clamp, shell size 14, 13/16-20 UNEF thread, 180° cable exit, 10.00mm cable opening. Metal construction, silver color, unshielded with clamp screws.

✓ Total Stock: 15 pcs

$ Price Range: $12.11 - $18.79

UT014AC Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Tomark Electronics Ltd ✓ Non-Authorised Inventory information	15 pcs On Request	15 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

UT014AC Description

Short technical summary and product information.

The UT014AC is a backshell with cable clamp designed for circular connectors. It features a shell size 14 with a 13/16-20 UNEF thread and a 180° cable exit, accommodating cables up to 10.00mm in diameter. The metal construction provides durability, while the silver finish offers corrosion resistance. Unshielded, it includes clamp screws for secure cable retention. This backshell is suitable for use in connector assemblies requiring strain relief and environmental protection. Typically used in industrial, military, and aerospace applications where reliable connections are critical. The clamp screws ensure a tight grip on the cable, preventing pull-out and maintaining connection integrity.

UT014AC Quick Information

Product Type: Backshell / Cable Clamp

Canonical Name: Backshell, Cable Clamp, Shell Size 14, Thread Size 13/16-20 UNEF, 180° Cable Exit, 10.00mm Cable Opening, Metal, Silver, Unshielded, with Clamp Screws

Subcategory: Backshells and Cable Clamps

UT014AC Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: Unaffected

UT014AC Estimated Pricing

Qty	Low	High
1+	$18.79	$18.79
10+	$15.97	$15.97
25+	$14.97	$14.97
50+	$14.25	$14.25
100+	$13.57	$13.57
250+	$12.72	$12.72
500+	$12.11	$12.11

Estimated market price range - modelled values for guidance only, not live distributor offers.

UT014AC Features

Shell size 14 with 13/16-20 UNEF thread.
180° cable exit for straight cable routing.
Accommodates cables up to 10.00mm diameter.
Metal construction with silver finish.
Includes clamp screws for secure cable retention.

UT014AC Applications

Used in circular connector assemblies for strain relief.
Ideal for industrial and military connector applications.
Provides cable management in harsh environments.
Suitable for unshielded connector systems.

UT014AC FAQs

7 frequently asked questions generated from this part’s specifications.

What is the shell size of the UT014AC backshell?

The UT014AC has a shell size of 14.

What thread size does the UT014AC use?

It uses a 13/16-20 UNEF thread.

What is the cable exit angle of the UT014AC?

The cable exit angle is 180°.

What is the maximum cable diameter for the UT014AC?

The cable opening is 10.00mm, accommodating cables up to that diameter.

Is the UT014AC backshell shielded?

No, it is unshielded.

What material is the UT014AC made of?

It is metal with a silver finish.

Does the UT014AC include clamp screws?

Yes, it features clamp screws for cable retention.
