| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | NDC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Size | |
| Contact Type | |
| Fastening Type | |
| Gasket Material | |
| Halogen Free | |
| Housing Color | |
| Ingress Protection | |
| Insert Material | |
| Insulation Resistance | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| O-Ring Material | |
| Operating Temperature | |
| Orientation | |
| Packaging Method | |
| SVHC Present | |
| Salt Spray Duration | |
| Sealing | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Thread Size | |
| Type | |
| Withstanding Voltage |

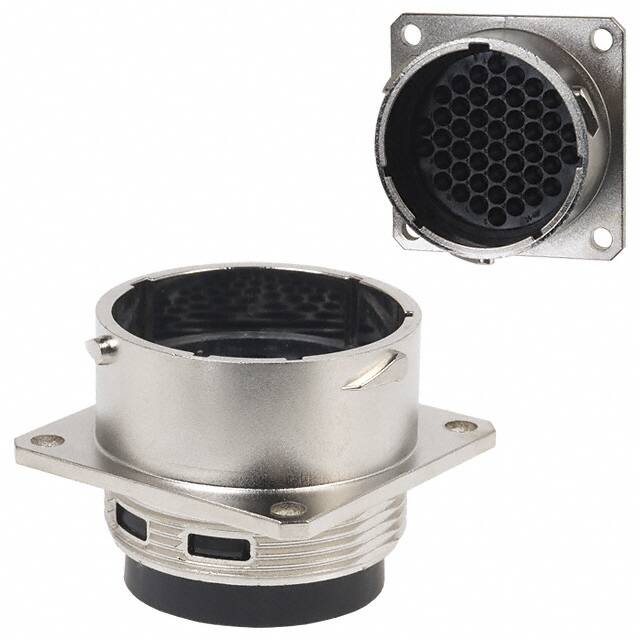

The UT002448PH is a circular connector receptacle housing from the UT0 series by Souriau-Sunbank by Eaton. It is designed to accommodate 48 male pin contacts (size 16, ordered separately) and features a shell size of 24-48. The housing is constructed from zinc alloy with a nickel finish, providing a shielded and halogen-free enclosure.
This housing offers panel mounting with a flange and uses a bayonet lock for secure mating. It is rated for IP67 dust-tight and waterproof protection, with additional IP68 (3 bar/30min) and IP69K sealing capabilities per the datasheet. The operating temperature range is -40°C to 105°C, and it is rated for a minimum of 500 mating cycles.
The insert is made of PA 66 with a UL94 V-0 flammability rating. The housing is RoHS3 compliant. Contacts are not included and must be ordered separately.
| Qty | Low | High |
|---|---|---|
| 1+ | $56.78 | $56.78 |
| 5+ | $41.82 | $41.82 |
| 10+ | $35.03 | $35.03 |
| 25+ | $34.31 | $34.31 |
| 50+ | $31.69 | $31.69 |
| 100+ | $27.83 | $27.83 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
48 positions.
Panel mount with flange.
IP67 (dust tight, waterproof), also IP68 (3 bar/30min) and IP69K per datasheet.
-40°C to 105°C.
Zinc alloy, halogen free, with nickel finish.
Yes, RoHS3 compliant per datasheet.
