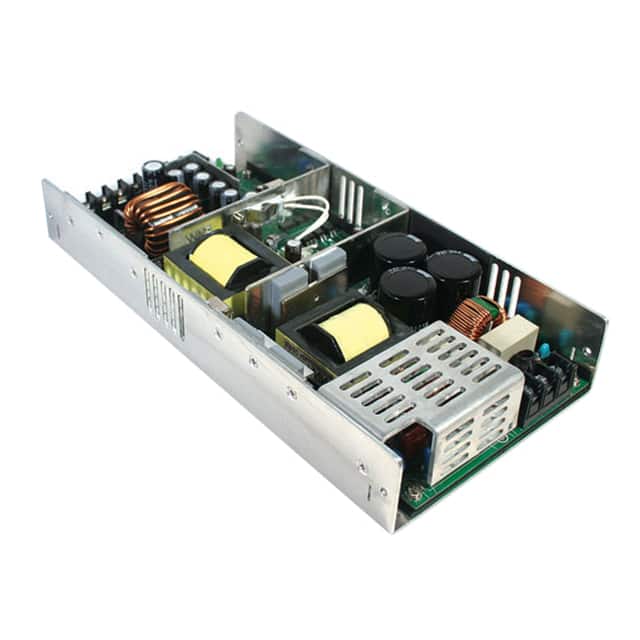

The Mean Well USA USP-500-15 is a 405W AC/DC converter designed for various applications. It provides a 15V output voltage with a rated current of 33.5A. The unit operates with a universal input voltage range of 90-264 VAC and boasts a typical efficiency of 90% at full load.
Key features include an active PFC circuit for improved power factor, adjustable output voltage, and remote ON/OFF control. The converter also includes a DC OK active signal and remote sensing capabilities. It is built with overload and over-voltage protection mechanisms.
With dimensions of 254mm x 127mm x 41mm, this chassis mount converter offers a high power density of 6.2W/in³. It operates within a temperature range of -20°C to 70°C (with derating) and has an MTBF of 129.8K hours minimum at 25°C.
This model is suitable for ITE (Commercial) applications and is certified by CB, CE, cURus, and TUV.
The output voltage is 15V.
The rated output current is 33.5A.
The rated power is 405W, and it can reach 502.5W with forced air cooling.
The input voltage range is 90 to 264 VAC.
The typical efficiency is 90%.
The operating temperature range is -20°C to 70°C with derating.
Yes, it features constant current limiting overload protection.
