| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

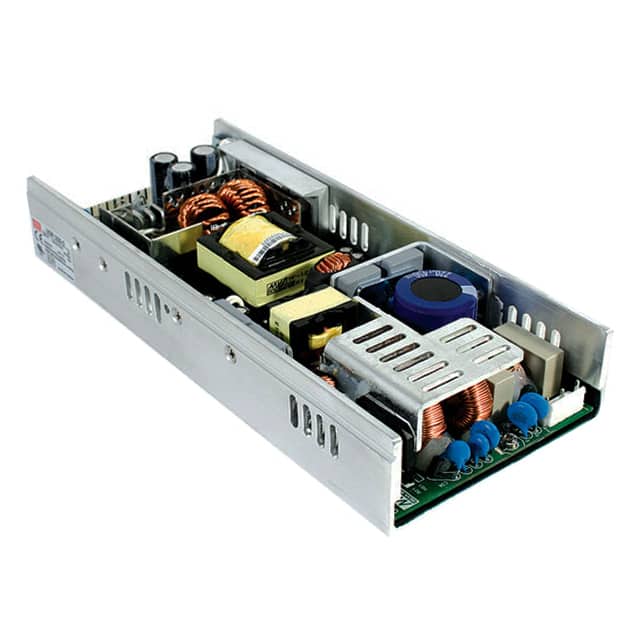

The Mean Well USA USP-350-3.3 is an open frame AC/DC converter designed for ITE (Commercial) applications. It provides a power output of 165W, with a peak of 231W under forced air conditions, and delivers 50A of current.
This converter features adjustable output, Power Factor Correction (PFC), and a universal input voltage range. It is designed for chassis mounting and operates within a temperature range of -10°C to 65°C, with derating applied. The unit has a single output and is approved by CB, CE, cURus, and TUV.
With dimensions of 235.2mm x 101.5mm x 38.0mm, the USP-350-3.3 offers a compact solution for power conversion needs. Its efficiency is rated at 78%.
Chassis mount.
-10°C to 65°C with derating.
3 kV.
78%.
50 A.
235.2 mm x 101.5 mm x 38.0 mm.
CB, CE, cURus, TUV.
