| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
183 pcs
|
183 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| California Proposition 65 | |
| Connector Type | |
| Contact Material | |
| Features | |
| Gender | |
| Insulator Material | |
| Lead Style | |
| Lead-Free Solderable | |
| Mating Cycles | |
| Mating Force (After 100 cycles) | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Packaging Method | |
| Packaging Type | |
| Plating | |
| SVHC Present | |
| Specifications | |
| Standard Package Quantity | |
| Tape & Reel | |
| Termination | |
| Unmating Force (After 100 cycles) | |
| Voltage | |
| Withdrawal Force |

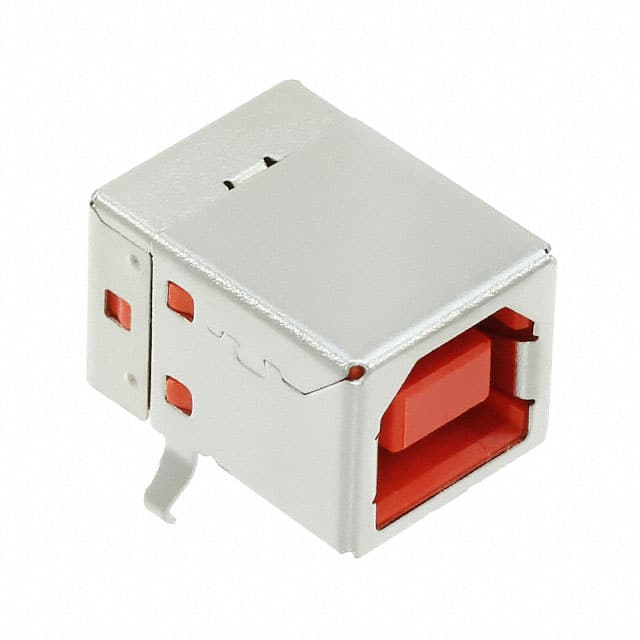

The Samtec USBR-B-S-F-O-TH is a high-retention USB 2.0 Type B receptacle designed for rugged applications. It features 4 contacts in a right angle through hole configuration with a board lock for secure attachment. The connector is rated for 30 VAC and operates over a temperature range of -50°C to 85°C. It is lead-free solderable and packaged in trays of 120 pieces.
This connector complies with Class 1, DIV II minimum withdrawal requirement of 15 N, with typical mating and unmating forces of 52.51 N and 51.18 N after 100 cycles respectively. The contact material is phosphor bronze with gold plating on contacts, nickel on shell, and tin on tails. The insulator is high temperature thermoplastic.
Designed for industrial and high-vibration environments, the USBR-B-S-F-O-TH offers reliable performance with up to 1500 mating cycles. It is RoHS3 compliant and REACH unaffected, with a California Proposition 65 warning for nickel content.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.58 | $1.58 |
| 50+ | $1.12 | $1.12 |
| 120+ | $0.67 | $0.67 |
| 600+ | $0.64 | $0.64 |
| 5,040+ | $0.59 | $0.59 |
| 10,080+ | $0.56 | $0.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
USB 2.0.
4 contacts.
30 VAC.
Through hole, right angle with horizontal orientation.
-50°C to 85°C.
15 N minimum.
Yes, the USBR series is lead-free solderable.
