| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| California Proposition 65 | |
| China RoHS | |
| Connector Type | |
| Contact Material | |
| Features | |
| Gender | |
| Halogen Free | |
| Insulator Material | |
| Lead-Free Solderable | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Packaging Description | |
| Packaging Type | |
| Plating | |
| Retention Force (Minimum) | |
| Specifications | |
| Standard Package Quantity | |
| Tape & Reel | |
| Termination | |
| Voltage |

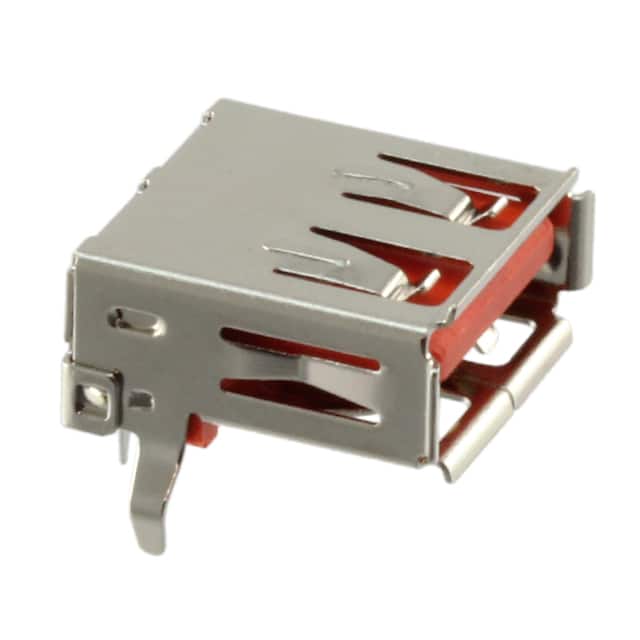

The Samtec USBR-A-S-F-O-TH is a high-retention USB 2.0 Type A receptacle connector designed for reliable performance in rugged environments. It features a single shell, right angle through hole termination, and a board lock for secure mounting. The connector has 4 contacts with gold flash on the mating area and tin on the tails, ensuring durable electrical connections.
Electrical specifications include a 30 VAC voltage rating and an operating temperature range of -50°C to +85°C. Mechanical reliability is enhanced with a minimum 15N withdrawal force and a tested lifespan of 1500 mating cycles. The insulator is made of high temperature thermoplastic, and the contacts are phosphor bronze.
Packaged in trays of 120 pieces suitable for automation, this connector is lead-free solderable (wave solder only). It complies with RoHS3, REACH (no SVHCs), and MSL 1 (unlimited) requirements. The orange color code indicates a specific polarizing option for orientation.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.07 | $2.07 |
| 50+ | $1.41 | $1.41 |
| 120+ | $0.84 | $0.84 |
| 600+ | $0.74 | $0.74 |
| 1,080+ | $0.72 | $0.72 |
| 2,040+ | $0.71 | $0.71 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Through hole, right angle (horizontal mounting).
30 VAC.
4 contacts (positions).
-50°C to +85°C.
Yes, RoHS3 compliant (EU RoHS 2 + Phthalate Directive).
15 N minimum withdrawal force.
120 pieces per tray.
