| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Material | |
| Features | |
| Gender | |
| Insulator Material | |
| Lead Style | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Plating | |
| Prop 65 | |
| Shell Material | |
| Specifications | |
| Tape & Reel | |
| Termination | |
| Voltage |

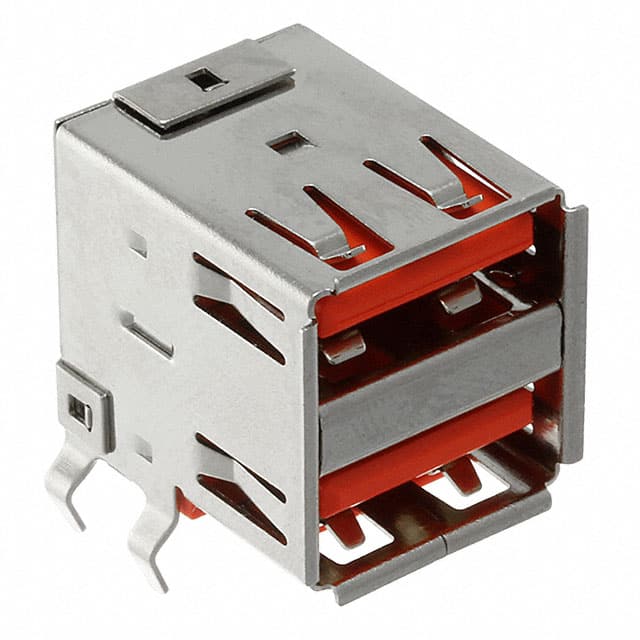

The Samtec USBR-A-D-S-O-TH is a high-retention USB 2.0 Type A receptacle connector designed for reliable and secure connections. It features 8 contacts arranged in a dual-port configuration, with a right-angle through-hole mounting style for horizontal PCB placement. The connector is rated for 30 VAC and has an operating temperature range of -50°C to +85°C, making it suitable for a variety of environments.
This connector uses phosphor bronze contacts with 30 µ" gold plating on the mating area and tin on the tails, ensuring excellent conductivity and corrosion resistance. The insulator is made from high-temperature thermoplastic, and the shell is nickel-plated. The orange color and board lock feature aid in visual identification and secure PCB attachment.
Designed for USB 2.0 applications, the USBR-A-D-S-O-TH is rated for 1500 mating cycles. It is packaged in trays with a standard quantity of 100 pieces. The connector is lead-free solderable via wave soldering only.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.05 | $3.05 |
| 50+ | $2.77 | $2.77 |
| 100+ | $2.19 | $2.19 |
| 500+ | $1.69 | $1.69 |
| 1,000+ | $1.30 | $1.30 |
| 5,000+ | $1.23 | $1.23 |
| 10,000+ | $1.18 | $1.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a USB-A (USB TYPE-A) receptacle connector.
The voltage rating is 30 VAC.
It is a through-hole, right angle mount with a horizontal mounting feature.
The operating temperature range is -50°C to +85°C.
It is rated for 1500 mating cycles.
The contact material is phosphor bronze with 30 µ" (0.76 µm) gold on the mating area and tin on the tails.
RoHS3 compliance is claimed but unverified.
