USBMULTILINKBDME The USBMULTILINKBDME is a USB 2.0 BDM debugger and programmer for Freescale RS08, HCS08, HC12, and HCS12 microcontrollers. It provides in-circuit debugging and programming via a 6-pin Berg connector, supporting target voltages from 1.6V to 5.25V and bus frequencies up to 35MHz.
Mfr Part #:

USBMULTILINKBDME

Available from 1 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The USBMULTILINKBDME is a USB 2.0 BDM debugger and programmer for Freescale RS08, HCS08, HC12, and HCS12 microcontrollers. It provides in-circuit debugging and programming via a 6-pin Berg connector, supporting target voltages from 1.6V to 5.25V and bus frequencies up to 35MHz.
✓ Total Stock: 1,414 pcs
$ Price Range: $93.62

USBMULTILINKBDME Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
1,414 pcs
On Request
1414 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

USBMULTILINKBDME Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contents
Current Consumption
For Use With
Interface
Operating System
Supply Voltage
Type
View Similar Products (0)

USBMULTILINKBDME Description

Short technical summary and product information.

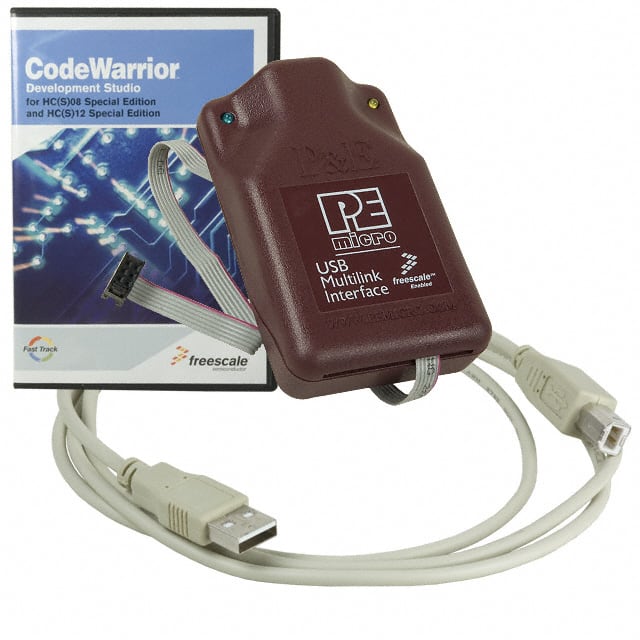

P&E's USB HCS08/HCS12 Multilink interface provides access to Background Debug Mode on Freescale RS08, HCS08, HC12, and HCS12 microcontrollers. It connects a Windows 2000/XP PC via USB 2.0 to the target's 6-pin Berg debug connector.



Key specifications: Supports target voltage range 1.6V to 5.25V, bus frequency up to 35MHz, draws less than 1mA from target. LED indicators: blue for power, yellow for target power. Contents include board(s) and cable(s).



Application context: Used for in-circuit debugging, programming internal/external FLASH, reading/writing registers and memory. Compatible with P&E software packages that auto-detect communication rate.



The interface is powered via USB (5V). No physical dimensions provided. RoHS3 compliant (unverified). MSL 1.

USBMULTILINKBDME Quick Information

Product Type: Debugger, Programmer (In-Circuit/In-System)
Canonical Name: USB HCS08/HCS12 Multilink Debugger and Programmer
Subcategory: In-Circuit Debugger/Programmer

USBMULTILINKBDME Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

USBMULTILINKBDME Estimated Pricing

Qty Low High
1+ $93.62 $93.62

Estimated market price range - modelled values for guidance only, not live distributor offers.

USBMULTILINKBDME Features

  • USB 2.0 BDM debugger for Freescale MCUs.
  • Supports target voltage 1.6V to 5.25V.
  • Bus frequency up to 35MHz.
  • Less than 1mA current from target.
  • Includes board and cables.

USBMULTILINKBDME Applications

  • In-circuit debugging of RS08/HCS08/HC12/HCS12.
  • Programming internal and external FLASH memory.
  • Register and memory read/write via BDM.
  • Works with P&E software packages.

USBMULTILINKBDME FAQs

7 frequently asked questions generated from this part’s specifications.
What is the target voltage range supported by the USBMULTILINKBDME?

1.6V to 5.25V.

Which microcontrollers are supported?

Freescale RS08, HCS08, HC12, and HCS12.

What is the maximum bus frequency?

35 MHz.

What interface does it use to connect to a PC?

USB 2.0.

What is the current consumption from the target?

Less than 1 mA.

What type of connector does it use to connect to the target?

6-pin Berg connector.

Is the USBMULTILINKBDME RoHS compliant?

RoHS3 compliant (unverified).
