USBLC6-2SC6ЛЕНТА
ST
The STMicroelectronics USBLC6-2SC6ЛЕНТА is a low-capacitance TVS diode designed for high-speed data lines. It offers robust ESD protection with a maximum capacitance of 3.5 pF.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
| On Request | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Channels | |
| Mounting Type | |
| Operating Temperature |
The STMicroelectronics USBLC6-2SC6 is a low-capacitance Transient Voltage Suppressor (TVS) diode engineered for protecting high-speed data lines such as USB 2.0 and Ethernet. It provides effective electrostatic discharge (ESD) protection while maintaining signal integrity due to its ultra-low line capacitance.
Key electrical specifications include a typical reverse standoff voltage of 5.25V, a minimum breakdown voltage of 6V, and a maximum clamping voltage of 17V at 5A peak pulse current (10/1000μs). The device features a very low capacitance of up to 3.5 pF and a low leakage current of a maximum of 150 nA.

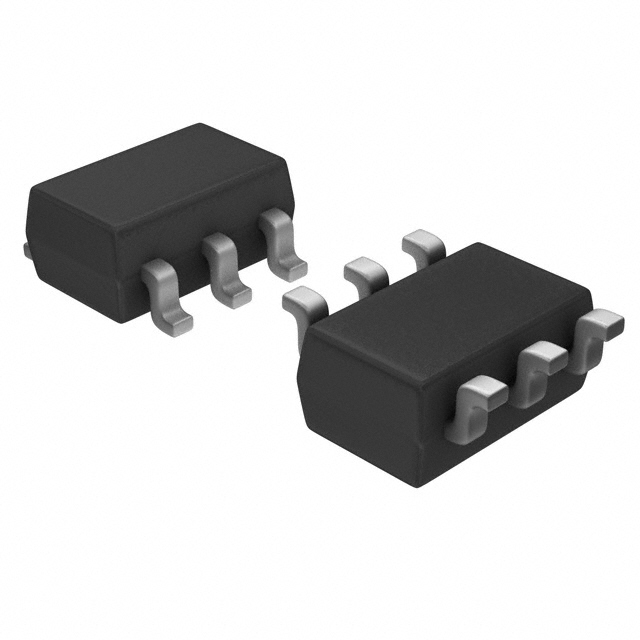

This TVS diode is housed in a compact SOT-23-6 package, suitable for surface mounting. It operates across a wide temperature range from -40°C to 150°C (TJ). The USBLC6-2SC6 is designed to comply with IEC 61000-4-2 Level 4 for ESD immunity, making it a reliable choice for portable electronics and communication interfaces.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.47 | $0.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical reverse standoff voltage is 5.25V.
The minimum breakdown voltage is 6V.
The maximum clamping voltage is 17V at 5A peak pulse current.
The peak pulse current rating is 5A for a 10/1000μs waveform.
The device has a very low capacitance, with a maximum of 3.5 pF.
The operating temperature range is -40°C to 150°C (TJ).
The USBLC6-2SC6 is supplied in a SOT-23-6 package.
