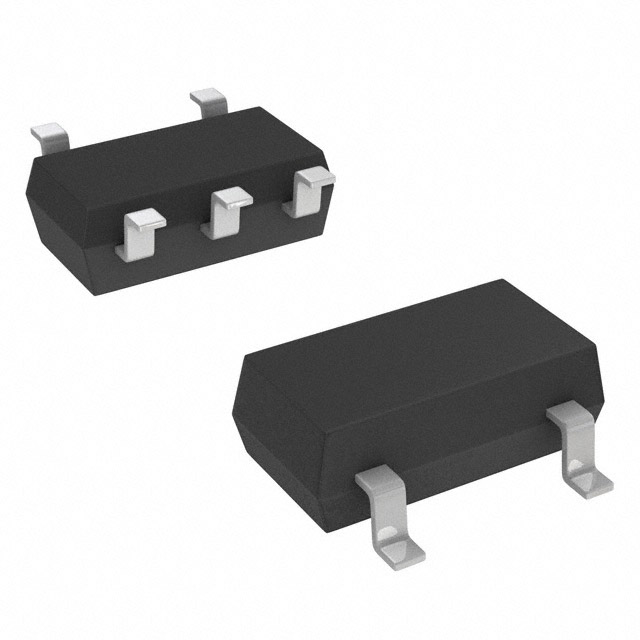

The STMicroelectronics USBDF01W5 is a 2nd order RC (Pi) EMI filter designed for signal integrity applications, particularly in USB interfaces. This filter features two channels, each with a resistance of 33 Ohms and a capacitance of 47pF, providing a low pass filtering characteristic.
With a surface mount package (5-TSSOP, SC-70-5, SOT-353), the USBDF01W5 is suitable for automated assembly processes. It operates within a temperature range of -40°C to 85°C and includes ESD protection. The filter's attenuation value is -25dB at 900MHz, making it effective in suppressing unwanted electromagnetic interference.
Key specifications include its 2nd order RC (Pi) technology, 2 channels, and a compact size of 2.00mm x 1.25mm with a height of 1.09mm. The RoHS status is ROHS3 Compliant, and it has a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The USBDF01W5 filter has a resistance of 33 Ohms and a capacitance of 47pF per channel.
The USBDF01W5 is a 2nd order, RC (Pi) low pass EMI filter.
The USBDF01W5 filter has 2 channels.
The operating temperature range for the USBDF01W5 is -40°C to 85°C.
The USBDF01W5 filter is available in a 5-TSSOP, SC-70-5, SOT-353 package.
The USBDF01W5 is ROHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the USBDF01W5 is 1 Unlimited.
