| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,314 pcs
|
3314 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Function | |
| Industrial Grade | |
| Interface | |
| Lead Spacing | |
| Medical Grade | |
| Military Grade | |
| Operating Temperature | |
| Operating Voltage | |
| Protocol | |
| Standards | |
| Supplier Device Package | |
| Voltage |

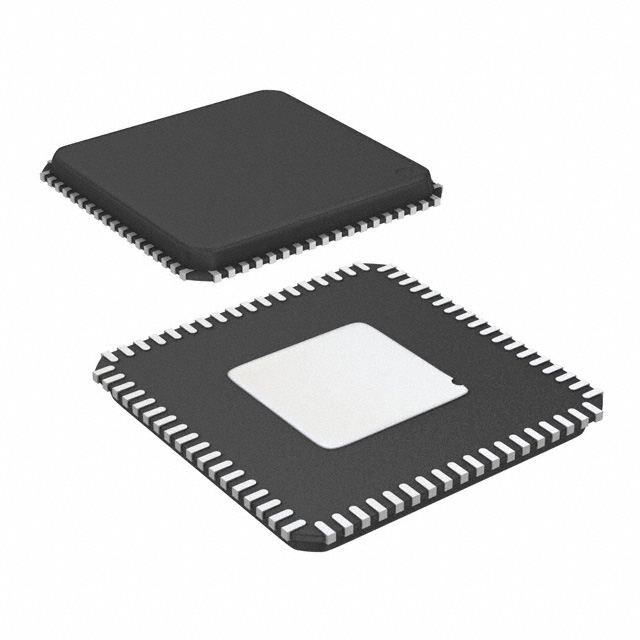

The USB5537B-5000AKZE from Microchip Technology is a versatile 7-port USB Hub Controller designed to meet the demands of modern connectivity.
This controller fully supports the USB 3.0 Specification, enabling SuperSpeed data transfers at 5Gbps on four downstream ports. It also integrates a USB 2.0 hub controller, providing compatibility with Hi-Speed (480Mbps), Full-Speed (12Mbps), and Low-Speed (1.5Mbps) signaling for legacy devices. The SuperSpeed and USB 2.0 controllers operate in parallel, ensuring that high-speed data transfers are not impacted by slower traffic.
Key features include support for battery charging on a per-port basis, with automatic USB data line handshaking for USB 1.2 Charging Downstream Port (CDP) and Dedicated Charging Port (DCP) emulation. This allows for charging popular battery-powered devices, even from a mobile platform that is powered off, and supports high current requirements for tablets.
Configuration options include internal defaults, an on-chip OTP ROM, an external SPI ROM, or SMBus. The device is optimized for low-power operation and low thermal dissipation, making it suitable for various applications in Communications & Networking, Power Management, and Computers & Computer Peripherals. It is supplied in a 72-pin VQFN Exposed Pad package.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.65 | $3.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It supports USB 3.0 Specification for SuperSpeed (5Gbps), and USB 2.0 for Hi-Speed (480Mbps), Full-Speed (12Mbps), and Low-Speed (1.5Mbps) signaling.
There are four downstream USB 3.0 ports and three USB 2.0 ports.
The device operates at 1.25V and 3.3V.
The operating temperature range is 0°C to 85°C.
It is supplied in a 72-VFQFN Exposed Pad package.
Yes, it supports battery charging on a per-port basis with automatic USB data line handshaking for CDP and DCP.
