| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
325 pcs
|
325 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Bidirectional Channels | |
| Capacitance | |
| Capacitance @ Frequency | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Power Line Protection | |
| Reverse Standoff Voltage | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage |

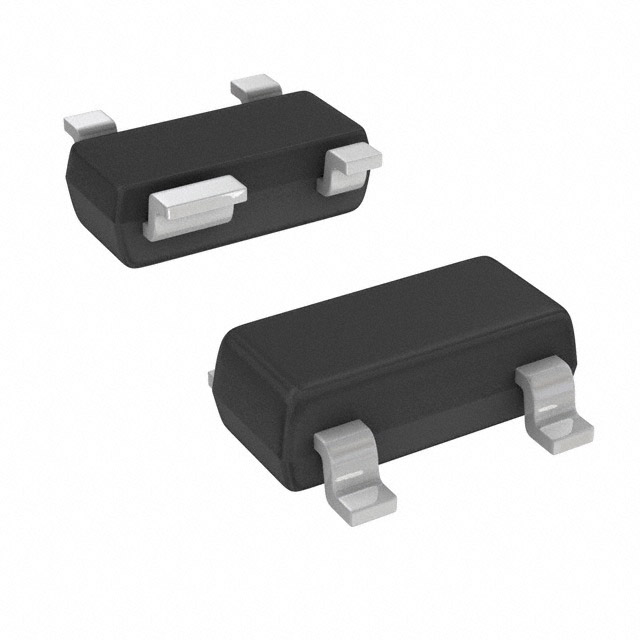

The USB50412CE3/TR7 is a bidirectional Zener TVS diode from Microchip Technology designed to protect sensitive electronics from voltage transients. It features a reverse standoff voltage of 12V and a clamping voltage of 26V at a peak pulse current of 5A (8/20µs). With a peak pulse power rating of 500W, it provides robust protection for Ethernet interfaces and other data lines.
This TVS diode offers a low typical capacitance of 3pF at 1MHz, making it suitable for high-speed signal lines without significant signal degradation. It is not intended for power line protection, as indicated by its power line protection specification of 'No'.
The device is housed in a surface-mount TO-253-4 / TO-253AA package, also known as SOT-143, and operates over a junction temperature range of -55°C to 150°C. It is RoHS3 compliant and has an MSL of 1 (unlimited). The part is supplied in tape and reel packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.88 | $0.88 |
| 1,000+ | $0.88 | $0.88 |
| 3,000+ | $0.81 | $0.81 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12V.
26V.
5A (8/20µs).
SOT-143 (TO-253-4).
500W.
3pF at 1MHz.
-55°C to 150°C (junction).
