| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Shielding | |
| Specifications | |
| Termination | |
| Termination Style | |
| Voltage |

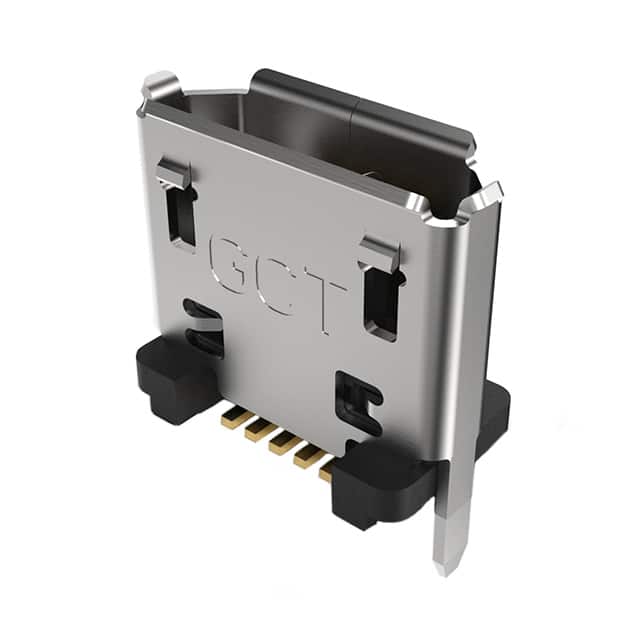

This GCT USB3180-30-C is a USB 2.0 Micro-B receptacle designed for vertical mounting. It supports both surface mount and through hole mounting types with a solder termination. The connector is shielded and rated for 1.8A current and 30VAC voltage, withstanding operating temperatures from -30°C to 85°C. It features 5 contacts and 1 port, designed for 10000 mating cycles. The component includes features like a board guide and pick and place cap, making it suitable for automated assembly processes. It is RoHS3 compliant and has an MSL of 1.
This USB connector assembly is ideal for applications requiring a compact and reliable connection standard. Its robust construction and specified mating cycles ensure durability in various electronic devices and systems. The vertical mounting orientation is beneficial for space-constrained designs.
Key specifications include its USB 2.0 compliance, 1.8A current rating, and 30VAC voltage rating. The shielded design helps protect against electromagnetic interference. The operating temperature range of -30°C to 85°C allows for use in a variety of environmental conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1.8A.
30VAC.
Surface mount and through hole, vertical orientation.
5 contacts.
10,000 cycles.
-30°C to 85°C.
Yes, shielded.
