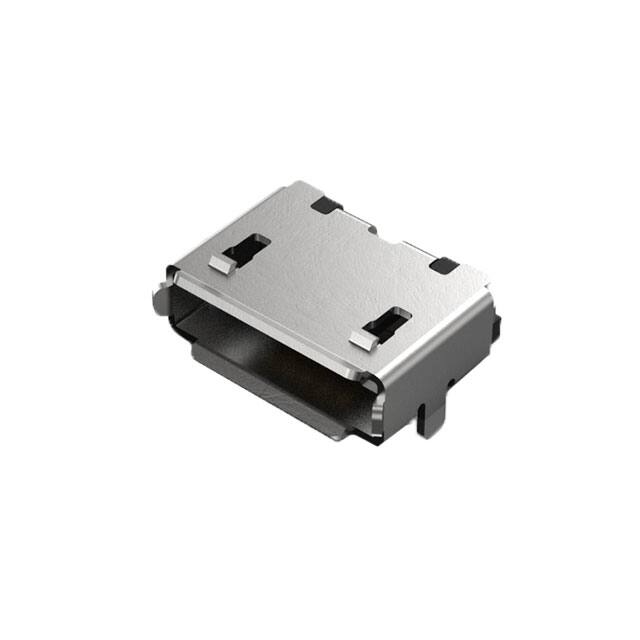

The GCT USB3090-30-A is a Micro USB Type AB receptacle connector designed for surface mount technology (SMT) with a right angle orientation and bottom mount configuration. It features 5 contacts (signal pins 2,3,4 and power pins 1,5) and is shielded to reduce electromagnetic interference. The connector supports USB 2.0 standard and includes solder retention for secure attachment to the PCB.
Electrical ratings include a maximum current of 1.0A on signal pins and 1.8A on power pins, with a maximum voltage rating of 30VAC. Contact resistance is 30 mΩ maximum under dry circuit conditions, and insulation resistance is 1000 MΩ minimum at 100VDC. The operating temperature range is -30°C to +85°C.
Mechanically, the connector is rated for a minimum of 10,000 mating cycles with an initial mating force of 35 N maximum and unmating force between 8 N and 25 N. The mounting type is surface mount with through-hole retention stakes, and termination is solder.
This connector is suitable for applications requiring a compact USB interface with reliable electrical performance and durability. It is RoHS3 compliant and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.73 | $0.73 |
| 10+ | $0.64 | $0.64 |
| 25+ | $0.58 | $0.58 |
| 100+ | $0.53 | $0.53 |
| 250+ | $0.48 | $0.48 |
| 1,000+ | $0.40 | $0.40 |
| 1,500+ | $0.37 | $0.37 |
| 4,500+ | $0.36 | $0.36 |
| 9,000+ | $0.34 | $0.34 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 contacts (signal pins 2,3,4 and power pins 1,5).
Signal pins: 1.0A maximum; Power pins: 1.8A maximum.
30 VAC maximum.
Surface mount, right angle, bottom mount with through-hole retention stakes.
-30°C to +85°C.
10,000 cycles minimum.
Yes, it is shielded.
