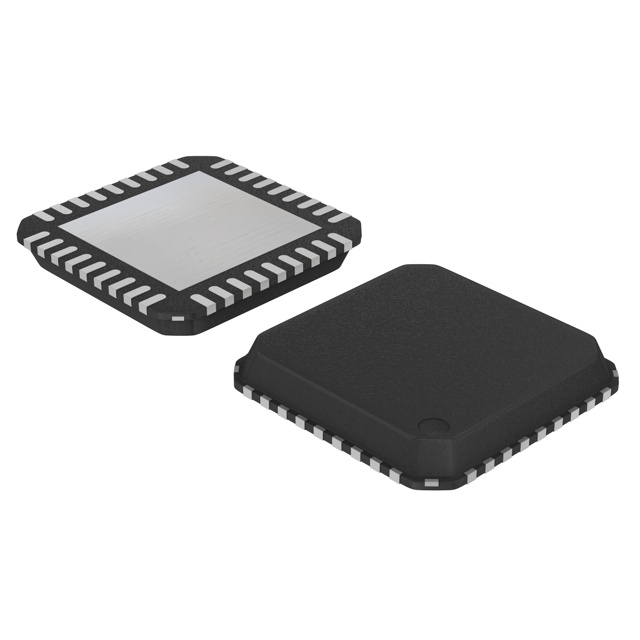

USB2514BT/M2 The Microchip Technology USB2514BT/M2 is a 4-port USB 2.0 High-Speed Hub Controller. It operates within a voltage range of 3V to 3.6V and is housed in a 36-VFQFN exposed pad package.
Mfr Part #:

USB2514BT/M2

Available from 1 distributors
Mfr Name: Microchip Technology
Microchip Technology
The Microchip Technology USB2514BT/M2 is a 4-port USB 2.0 High-Speed Hub Controller. It operates within a voltage range of 3V to 3.6V and is housed in a 36-VFQFN exposed pad package.
✓ Total Stock: 2,580 pcs
$ Price Range: $3.65

USB2514BT/M2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
2,580 pcs
On Request
2580 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

USB2514BT/M2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Function
Interface
Operating Temperature
Protocol
Supplier Device Package
Voltage
Voltage Supply
View Similar Products (0)

USB2514BT/M2 Description

Short technical summary and product information.

The Microchip Technology USB2514BT/M2 is an integrated circuit designed for USB 2.0 High-Speed applications, functioning as a 4-port hub controller. This component operates efficiently within a supply voltage range of 3V to 3.6V, consuming a typical current of 70mA. Its operating temperature range is from 0°C to 85°C, making it suitable for various environmental conditions.



The device is packaged in a 36-VFQFN exposed pad configuration, with an alternative supplier package noted as 36-SQFN (6x6). It supports the USB protocol and is specifically designed for hub control functions. The RoHS status is reported as ROHS3 Compliant, with a Moisture Sensitivity Level (MSL) of 1 (Unlimited) and REACH Unaffected status.



This hub controller is ideal for systems requiring multiple USB connections, providing a reliable interface for peripheral devices. Its compact package and specified operating parameters make it a versatile choice for embedded systems and consumer electronics where space and power efficiency are critical.

USB2514BT/M2 Quick Information

Product Type: Hub Controller
Canonical Name: USB 2.0 High-Speed 4-Port Hub Controller
Subcategory: Interface Controllers

USB2514BT/M2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

USB2514BT/M2 Estimated Pricing

Qty Low High
1+ $3.65 $3.65

Estimated market price range - modelled values for guidance only, not live distributor offers.

USB2514BT/M2 Features

  • 4-port USB 2.0 High-Speed Hub Controller.
  • Operates from 3V to 3.6V supply voltage.
  • Low operating current of 70mA.
  • Wide operating temperature range of 0°C to 85°C.
  • Packaged in 36-VFQFN exposed pad.

USB2514BT/M2 Applications

  • Ideal for adding multiple USB ports.
  • Suitable for embedded system integration.
  • Used in consumer electronics devices.
  • Provides reliable USB connectivity.

USB2514BT/M2 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the USB2514BT/M2?

The operating voltage range is 3V to 3.6V.

What is the operating temperature range for this hub controller?

The operating temperature range is 0°C to 85°C.

What package type is the USB2514BT/M2 available in?

It is available in a 36-VFQFN exposed pad package.

What is the function of the USB2514BT/M2?

Its function is Hub Controller.

What protocol does the USB2514BT/M2 support?

It supports the USB protocol.
