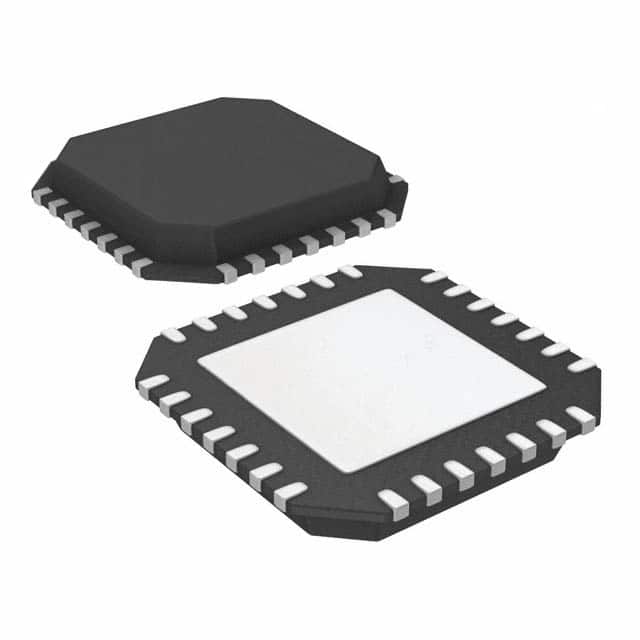

USB2412-DZK The Microchip Technology USB2412-DZK is a 2-port USB 2.0 Hi-Speed Hub Controller IC. It operates from a 3.3V supply and is designed for embedded applications.
Mfr Part #:

USB2412-DZK

Available from 4 distributors
Mfr Name: Microchip Technology
Microchip Technology
The Microchip Technology USB2412-DZK is a 2-port USB 2.0 Hi-Speed Hub Controller IC. It operates from a 3.3V supply and is designed for embedded applications.
✓ Total Stock: 29,309 pcs
$ Price Range: $3.65

USB2412-DZK Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
14,419 pcs
On Request
14419 pcs On Request 1 On Request On Request 21+ On Request On Request
Risen Electronics ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request On Request On Request 2026-02-16 21:33:16
Xingangxin ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
4,890 pcs
On Request
4890 pcs On Request 1 On Request On Request 24+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

USB2412-DZK Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
ESD Protection
Function
Halogen Free
Interface
Operating Temperature
Package / Case
Protocol
Standards
Supplier Device Package
Supply Voltage
Voltage
View Similar Products (0)

USB2412-DZK Description

Short technical summary and product information.

The Microchip Technology USB2412-DZK is a low-power, single transaction translator (STT) hub controller IC with two downstream ports, designed for embedded USB applications. It fully complies with the USB 2.0 Specification and supports low-speed, full-speed, and hi-speed downstream devices.



Key features include integrated USB termination resistors, a single external 3.3V supply with internal 1.2V regulators, and an on-chip 24 MHz crystal driver or external clock input. The device offers ESD protection up to 4 kilovolts on all USB pins and supports self-powered operation. It comes in a compact 28-pin QFN (5 x 5 mm) package and operates within a commercial temperature range of 0°C to +70°C.



This hub controller is optimized for minimal bill-of-materials and low-cost designs, making it suitable for a wide range of applications including automotive audio systems, embedded systems, gaming consoles, LCD monitors, and printers.



The USB2412-DZK is available in a 28-QFN lead-free, RoHS compliant package.

USB2412-DZK Quick Information

Product Type: USB Hub Controller
Canonical Name: USB2412 2-Port USB 2.0 Hi-Speed Hub Controller
Subcategory: Interface Controllers

USB2412-DZK Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

USB2412-DZK Estimated Pricing

Qty Low High
1+ $3.65 $3.65

Estimated market price range - modelled values for guidance only, not live distributor offers.

USB2412-DZK Features

  • 2-Port USB 2.0 Hi-Speed Hub Controller IC
  • Integrated USB termination and pull-up resistors
  • Supports 3.3 V external supply source
  • ESD protection up to 4 kilovolts
  • 28-pin QFN (5 x 5 mm) package

USB2412-DZK Applications

  • Embedded USB applications
  • Automobile/home audio systems
  • Gaming consoles
  • LCD monitors and TVs
  • Printers and scanners

USB2412-DZK FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the USB2412-DZK?

The operating temperature range is 0°C to 70°C.

What supply voltage does the USB2412-DZK require?

It supports a single external 3.3 V supply source.

What package type is the USB2412-DZK available in?

The USB2412-DZK is available in a 28-QFN and a 28-VFQFN Exposed Pad package.

What USB standard does the USB2412-DZK comply with?

It is fully compliant with the USB 2.0 Specification.

What is the ESD protection level for the USB2412-DZK?

It offers ESD protection up to 4 kilovolts on all USB pins.
