| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| SVHC Present | |
| Shielding | |
| Specifications | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage |

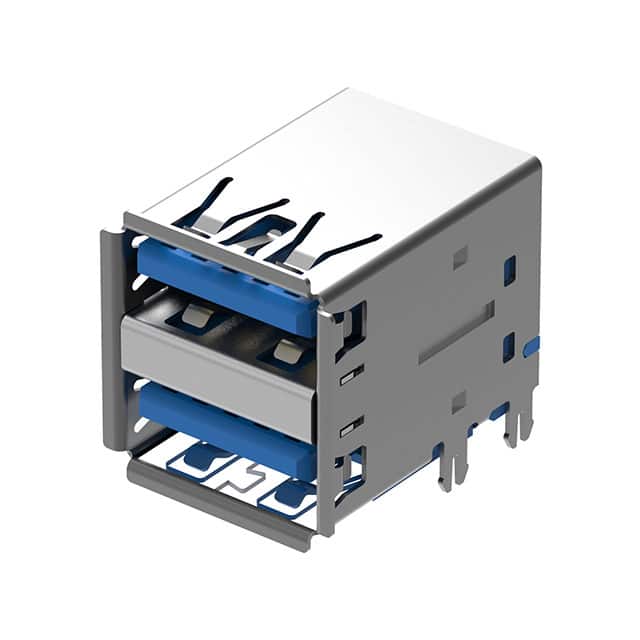

The USB1100-30-A is a USB 3.2 Gen 1 (USB 3.0) stacked USB-A receptacle connector manufactured by GCT. It provides two USB-A ports in a single housing, each with 9 contacts for a total of 18 contacts. The connector is designed for through hole, right angle mounting on a PCB, with a horizontal orientation. It is fully shielded and includes a board lock feature for secure attachment.
Electrically, the connector supports USB 3.2 Gen 1 data rates (up to 5 Gbps) and is rated for a current of 0.25A per signal contact and 1.8A per power contact, with a voltage rating of 100VAC. The operating temperature range is -55°C to 85°C, and it is rated for 5000 mating cycles, indicating good durability.
The connector uses solder termination and is suitable for applications requiring high-speed data transfer and power delivery in a compact dual-port form factor. Its shielded construction helps reduce electromagnetic interference. The through hole right angle mounting provides mechanical stability in industrial and consumer electronics designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.57 | $2.57 |
| 10+ | $2.25 | $2.25 |
| 25+ | $2.15 | $2.15 |
| 100+ | $2.01 | $2.01 |
| 200+ | $1.81 | $1.81 |
| 400+ | $1.67 | $1.67 |
| 1,000+ | $1.45 | $1.45 |
| 2,400+ | $1.36 | $1.36 |
| 5,000+ | $1.31 | $1.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 0.25A per signal contact and 1.8A per power contact.
The voltage rating is 100VAC.
The mounting type is through hole, right angle with horizontal orientation.
It has 2 stacked USB-A ports.
It supports USB 3.2 Gen 1 (also known as USB 3.1 Gen 1 and USB 3.0).
The operating temperature range is -55°C to 85°C.
It is rated for 5000 mating cycles.
