| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Material | |
| Features | |
| Gender | |
| Halogen Free | |
| Insulator Material | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Plating | |
| Prop 65 | |
| Specifications | |
| Tape & Reel | |
| Termination | |
| Voltage |

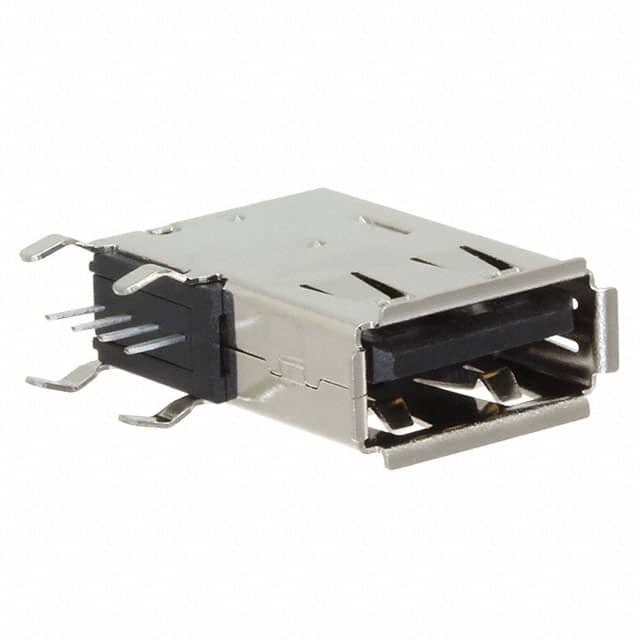

This USB 2.0 Type A receptacle from Samtec Inc., part number USB-A-S-S-B-VU, is designed for robust connectivity. It offers a standard USB 2.0 interface with 4 positions and a receptacle gender.
The connector features a through-hole, right-angle mounting type, making it suitable for specific PCB layouts. A key design element is the board lock feature, enhancing mechanical stability.
With an operating temperature range of -50°C to +85°C and a voltage rating of 30VAC, this connector is built for demanding environments. The termination is solder, and it has a mating cycle rating of 1500.
Constructed with a high-temperature thermoplastic insulator and phosphor bronze contacts, it is plated with gold on contacts, nickel on the shell, and tin on the tails. The product is packaged in bulk packaging trays and is lead-free solderable for wave soldering processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The USB-A-S-S-B-VU is a USB 2.0 Type A receptacle.
This connector has 4 positions.
It features a through-hole, right-angle mounting type.
The operating temperature range is -50°C to +85°C.
The voltage rating is 30 VAC.
The contact material is phosphor bronze, and the insulator material is high-temperature thermoplastic.
