| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Material | |
| Features | |
| Gender | |
| Halogen Free | |
| Insulator Material | |
| Lead-Free Solderable | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Packaging Type | |
| Plating | |
| Prop 65 | |
| Shielding | |
| Specifications | |
| Tape & Reel | |
| Termination | |
| Voltage |

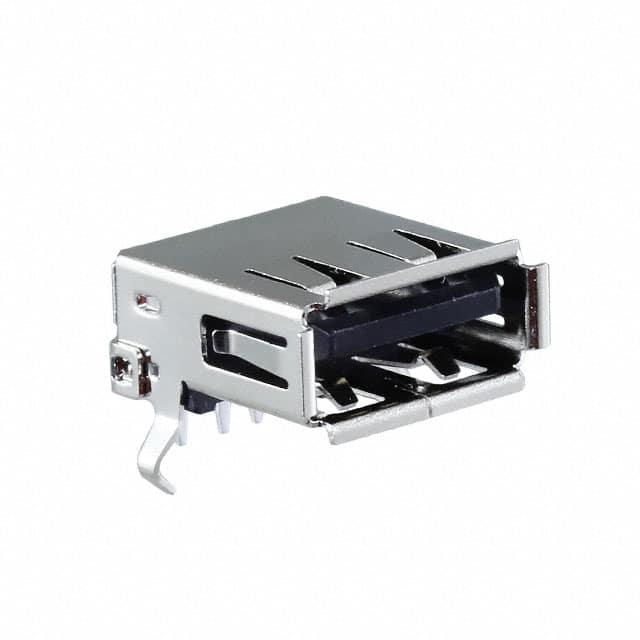

The USB-A-S-F-B-TH is a USB 2.0 Type A receptacle connector manufactured by Samtec Inc. It is designed for board-level USB interfaces, providing a reliable connection for USB 2.0 peripherals.
This connector features 4 contacts with gold plating on the mating area and tin on tails. It is shielded and includes a board lock for secure attachment to the PCB. The mounting type is through hole, right angle, allowing for horizontal orientation on the board. The insulator is made of high temperature thermoplastic, and the contact material is phosphor bronze.
The operating temperature range is -50°C to 85°C. It is rated for 30 VAC and supports up to 1500 mating cycles. The connector is RoHS3 compliant, REACH compliant, and lead-free solderable (wave solder only). It is packaged in trays.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.87 | $0.87 |
| 50+ | $0.68 | $0.68 |
| 100+ | $0.55 | $0.55 |
| 500+ | $0.47 | $0.47 |
| 1,000+ | $0.38 | $0.38 |
| 5,000+ | $0.33 | $0.33 |
| 10,000+ | $0.31 | $0.31 |
| 25,000+ | $0.31 | $0.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 contacts.
30 VAC.
Through hole, right angle.
USB 2.0.
-50°C to 85°C.
1500 cycles.
Yes, shielded.
