| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Industrial Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Relative Humidity | |
| Storage Temperature | |
| Type | |
| Voltage |

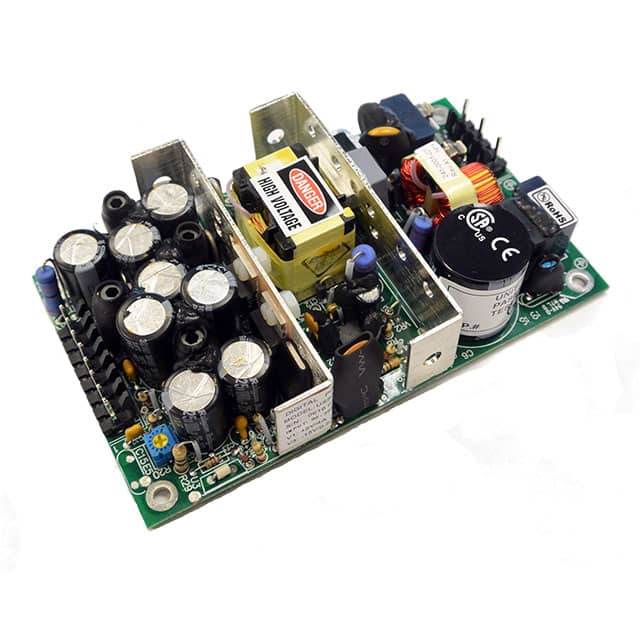

The Digital Power Corporation US50-124 is an open-frame AC/DC converter designed for ITE (Commercial) applications. It delivers up to 48W of continuous power with a single 24VDC output.
This converter operates with a universal input voltage range of 90 to 264VAC, making it suitable for worldwide use. Key electrical specifications include 75% typical efficiency at nominal line and full power, ±0.2% line regulation, and ±0.5% load regulation.
The US50-124 features a compact size of 5.00" x 3.00" x 1.20" (127.0mm x 76.2mm x 30.5mm) and is designed for chassis mounting. It operates within a temperature range of 0°C to 50°C at full power, with an extended range up to 70°C with derating. The unit is CSA and CE approved.
The US50-124 has a single output voltage of +24VDC.
The output current rating for the US50-124 is 2A.
The US50-124 accepts a universal input voltage range of 90 to 264VAC.
The operating temperature range for the US50-124 is 0°C to 50°C at full power.
The dimensions of the US50-124 are 5.00" L x 3.00" W x 1.20" H (127.0mm x 76.2mm x 30.5mm).
