Mfr Part #:

US1G

Mfr Name: Slkor

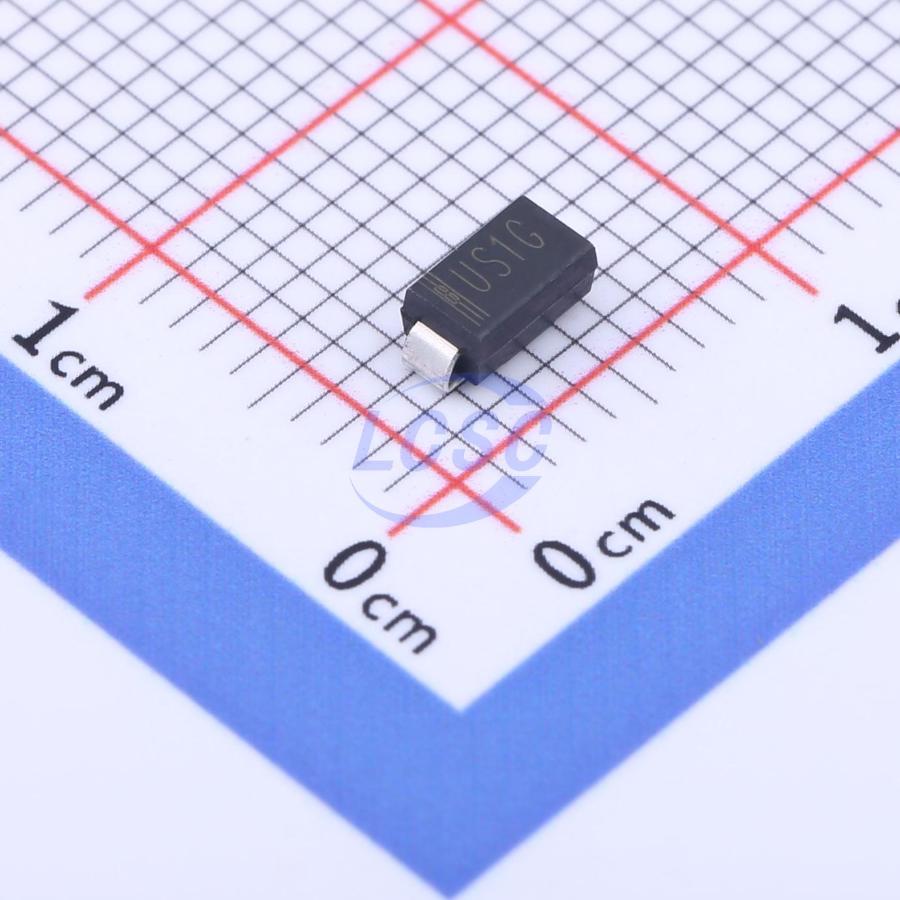

The SLKOR US1G is an ultrafast recovery rectifier designed for high-frequency rectification. It features a 400V reverse voltage and 1A average forward current.

✓ Total Stock: 3,108 pcs

$ Price Range: $0.25

US1G Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Braun Electronic Components ✓ Non-Authorised Inventory information	3,108 pcs On Request	3108 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

US1G Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Slkor
Halogen Free	No
Lead Style	Gull-Wing
Mounting Type	Surface Mount
Reverse Recovery Time	50 ns
Storage Temperature	-50 °C

View Similar Products (0)

US1G Description

Short technical summary and product information.

The SLKOR US1G is an ultrafast recovery rectifier with a typical reverse recovery time of 50 ns. It is designed for high-frequency rectification applications and operates with a maximum repetitive peak reverse voltage of 400V.

This rectifier can handle a maximum average forward rectified current of 1.00A at 100°C. Key electrical characteristics include a typical forward voltage of 1.25V at 1A and a leakage current of 5µA at 400V and 25°C. The junction temperature ranges from -50°C to 150°C.

Packaged in a DO-214AC/SMA surface-mount case, the US1G is suitable for industrial applications. It has a flammability rating of UL 94-V0 and is UL recognized. The component is qualified for industrial grade use.

Environmental compliance includes RoHS3 compliance and REACH unaffected status. It is also specified as lead-free and halogen-free.

US1G Quick Information

Product Type: Ultrafast Recovery Rectifier

Series: US1G

Canonical Name: US1G Ultrafast Recovery Rectifier

Subcategory: Ultrafast Recovery Rectifier

US1G Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: No

US1G Estimated Pricing

Qty	Low	High
1+	$0.25	$0.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

US1G Features

Ultrafast recovery time of 50 ns.
400V repetitive peak reverse voltage.
1A maximum average forward current.
SMA surface mount package.
Industrial grade qualification.

US1G Applications

Suitable for high-frequency rectification.
Used in industrial power supplies.
Applicable in consumer electronics.
Can be used in mobility applications.
Designed for energy conversion circuits.

US1G FAQs

7 frequently asked questions generated from this part’s specifications.

What is the maximum repetitive peak reverse voltage of the US1G?

The US1G is rated for 400V repetitive peak reverse voltage.

What is the maximum average forward current of the US1G?

The US1G has a maximum average forward current of 1A at 100°C.

What is the forward voltage drop of the US1G?

The typical forward voltage is 1.25V at a forward current of 1A.

How fast does the US1G recover from reverse conduction?

The US1G has a typical reverse recovery time of 50ns.

What package does the US1G come in?

The US1G is available in the DO-214AC/SMA surface mount package.

What are the peak forward surge current ratings for the US1G?

Peak forward surge current is 30A at 50Hz and 33A at 60Hz.

Can the US1G withstand high junction temperatures?

The US1G has a maximum junction temperature of 150°C, with an operating range of -50°C to +150°C.
