| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
48 pcs
|
48 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coating | |
| Grade | |
| Thickness |

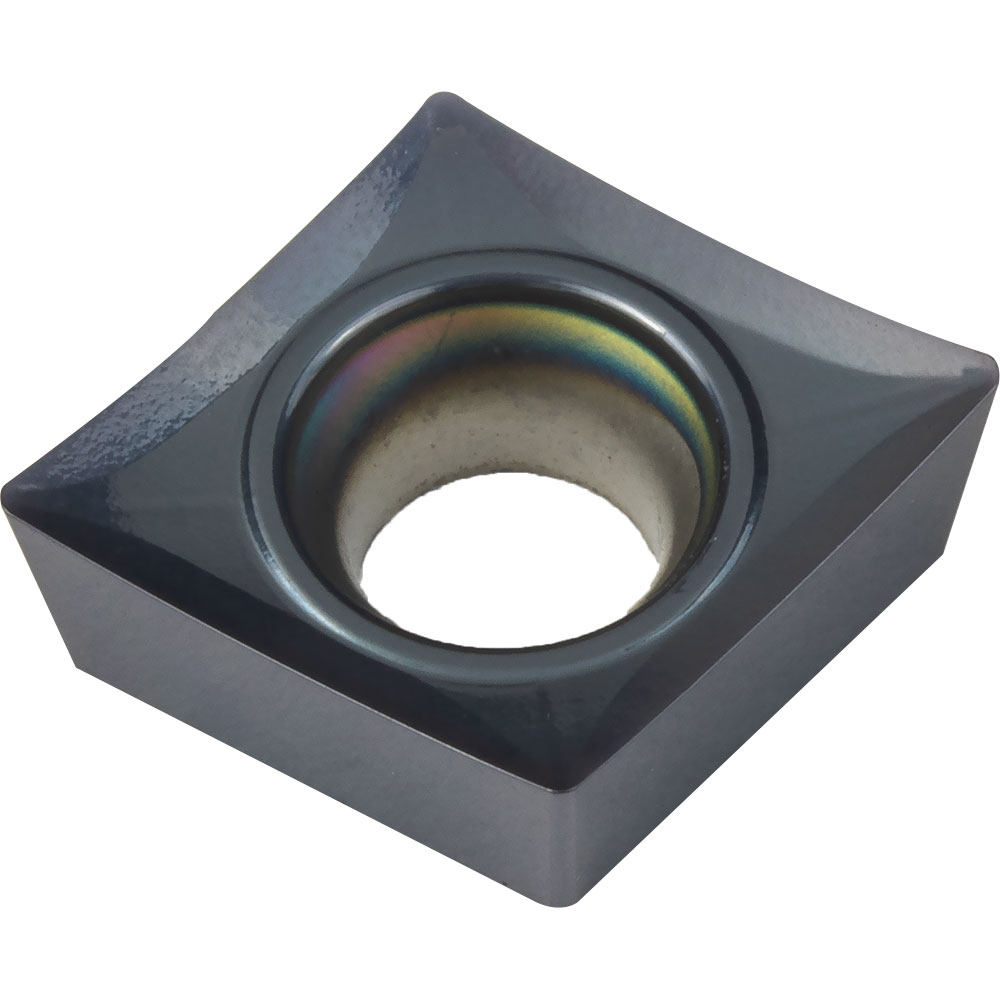

This Uni-tip Carbide CCGT 060202 FS US05A is a high-performance carbide turning insert engineered for finishing applications on challenging materials. Its primary application includes high-temperature alloys, Inconel, titanium alloys, and stainless steel, particularly under difficult machining conditions. It also offers extended application for soft steel in finishing operations.
The insert geometry is designated as FS, indicating its suitability for finishing to fine finishing of high-temperature alloys. Key dimensions include a cutting edge length of 6.45mm, an inscribed circle or height of 6.35mm, a thickness of 2.38mm, and a hole diameter of 2.8mm. The corner radius is 0.2mm, with a side clearance of 7 degrees.
The CCGT 060202 FS US05A utilizes a US05A grade with a multi-layer PVD coating, enhancing its durability and performance. Recommended cutting conditions vary based on material, with specific parameters provided for stainless steel, duplex stainless, iron-based hi-temp alloys, nickel or cobalt-based alloys, and titanium alloys.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.32 | $1.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The main applications include high-temperature alloys, Inconel, titanium alloys, and stainless steel under difficult conditions, as well as soft steel in finishing operations.
The cutting edge length is 6.45 mm.
The inscribed circle or height is 6.35 mm.
The thickness is 2.38 mm.
The corner radius is 0.2 mm.
The side clearance is 7 degrees.
It features the US05A grade with a multi-layer PVD coating.
