| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
900 pcs
|
900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

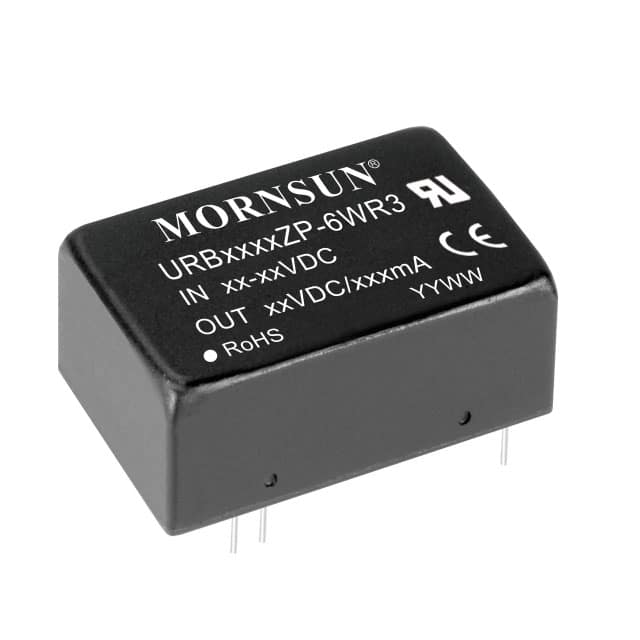

The URB2405ZP-6WR3 is an isolated DC-DC converter module manufactured by MORNSUN. It delivers a single 5V output with a power rating of 6W. The converter is designed for ITE (Commercial) applications and offers 82% typical efficiency.
Electrical specifications include a minimum input voltage of 9V, an output current of 1.2A, and an operating temperature range of -40°C to 85°C with derating. The module complies with safety standards 60950-1 and 62368-1 and is approved by CB, CE, cURus, and UL.
Packaged in a 24-DIP module with 7 leads, the converter features through-hole mounting for reliable board-level assembly. Its compact dimensions are 32.0mm x 20.0mm x 10.8mm.
| Qty | Low | High |
|---|---|---|
| 15+ | $9.86 | $9.86 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5V
1.2A
82%
-40°C to 85°C with derating
24-DIP Module, 7 Leads
RoHS3 Compliant (unverified)
60950-1; 62368-1
