| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,918 pcs
|
1918 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Diameter | |
| Dimensions | |
| Failure Rate | |
| Height | |
| Lead Style | |
| Mounting Type | |
| Technology | |
| Voltage Rating |

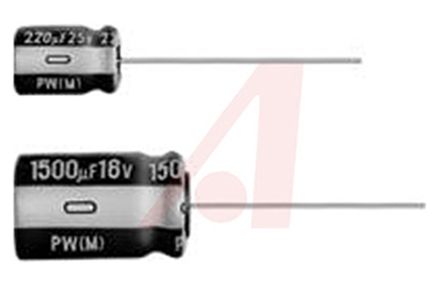

The Nichicon UPW1E220MDD6 is an aluminum electrolytic capacitor belonging to the PW series. This component is designed for through-hole mounting and offers a capacitance of 22µF with a tolerance of ±20%. It has a rated DC voltage of 25V.
Key electrical specifications include a ripple current of 120mArms and a leakage current of 16.5 μA. The capacitor operates within a temperature range of -55°C to +105°C. Its dimensions are 5 x 7mm, with a height of 7mm and a diameter of 5mm. The lead pitch is 2mm, and it has a specified lifetime of 8000 hours.
This capacitor is suitable for various applications including capacitor selection, equipment matching, repair spare parts, and project batch procurement. The standard package quantity is 200 units.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.32 | $1.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance is 22µF with a tolerance of ±20%.
The rated voltage is 25V DC.
The operating temperature range is -55°C to +105°C.
The rated lifetime is 8000 hours.
The typical leakage current is 16.5µA at 25°C, 1V, 1min.
The ripple current rating is 120mArms.
The capacitor is a through-hole device with a 5x7mm cylindrical package and 2mm lead pitch.
