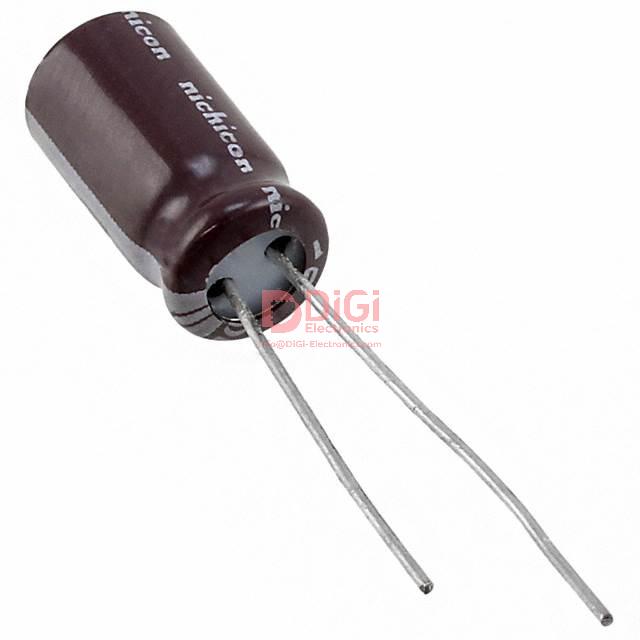

UPV1H220MGD The Nichicon UPV1H220MGD is an aluminum electrolytic capacitor designed for general purpose applications. It features a capacitance of 22 µF and a voltage rating of 50 V.
Mfr Part #:

UPV1H220MGD

Available from 1 distributors
Mfr Name: Nichicon
Nichicon
The Nichicon UPV1H220MGD is an aluminum electrolytic capacitor designed for general purpose applications. It features a capacitance of 22 µF and a voltage rating of 50 V.
✓ Total Stock: 450 pcs
$ Price Range: $1.32

UPV1H220MGD Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
450 pcs
On Request
450 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

UPV1H220MGD Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
Impedance
Lead Spacing
Lead Style
Mounting Type
Operating Temperature
Polarization
Tolerance
View Similar Products (0)

UPV1H220MGD Description

Short technical summary and product information.

This Nichicon UPV1H220MGD is an aluminum electrolytic capacitor from the UPV series, suitable for general purpose applications. It offers a capacitance of 22 µF with a tolerance of ±20% and is rated for a maximum operating voltage of 50 V.



The capacitor operates within a temperature range of -55°C to 105°C and has a rated lifetime of 5000 hours at 105°C. Its physical dimensions include a diameter of 6.30mm and a seated height of 12.50mm, with a lead spacing of 2.50mm. The mounting type is through hole.



Key electrical characteristics include an impedance of 910 mOhms. The product status is listed as obsolete.

UPV1H220MGD Quick Information

Product Type: Aluminum Electrolytic Capacitor
Series: UPV
Canonical Name: Nichicon UPV1H220MGD Aluminum Electrolytic Capacitor
Subcategory: Aluminum Electrolytic Capacitors

UPV1H220MGD Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

UPV1H220MGD Estimated Pricing

Qty Low High
1+ $1.32 $1.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

UPV1H220MGD Features

  • Rated for 50V DC operation.
  • Features 22µF capacitance.
  • ±20% capacitance tolerance.
  • Operates at 105°C.
  • Through-hole mounting type.

UPV1H220MGD Applications

  • General purpose filtering and decoupling circuits.
  • Power supply input and output smoothing.
  • DC-DC converter output filtering.
  • Audio coupling and bypass applications.

UPV1H220MGD FAQs

5 frequently asked questions generated from this part’s specifications.
What is the capacitance of the Nichicon UPV1H220MGD capacitor?

The capacitance is 22 µF.

What is the rated voltage for the UPV1H220MGD capacitor?

The rated voltage is 50 V.

What is the operating temperature range for this capacitor?

The operating temperature range is -55°C to 105°C.

What is the expected lifetime of the UPV1H220MGD at 105°C?

The lifetime is 5000 hours at 105°C.

What type of mounting does the UPV1H220MGD capacitor use?

It uses through-hole mounting.
