| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
602,667 pcs
|
602667 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
54,000 pcs
|
54000 pcs | On Request | 1 | On Request | On Request | 1410+ | On Request | On Request | |
|
110 pcs
|
110 pcs | On Request | 1 | On Request | On Request | 00+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bandwidth | |
| Circuit | |
| Impedance | |
| Insertion Loss | |
| Mounting Style | |
| Operating Temperature | |
| P1dB | |
| Propagation Delay | |
| RF Type | |
| Technology | |
| Topology |

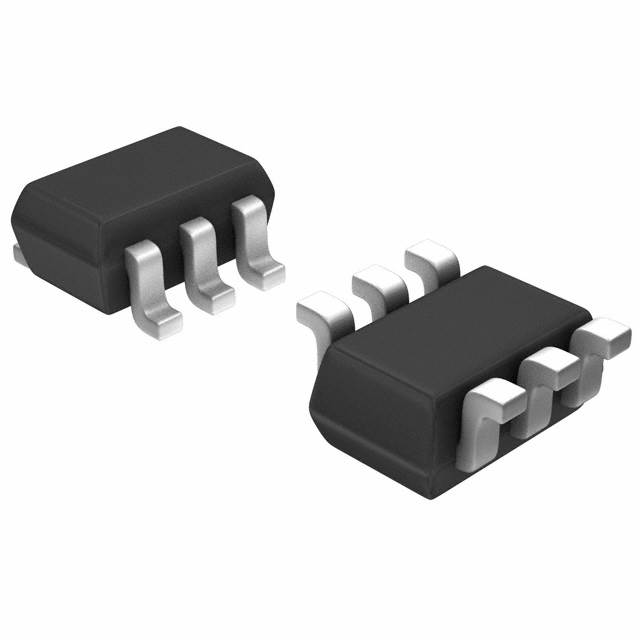

The Renesas UPG2179TB-E4-A is a Single Pole Double Throw (SPDT) RF Switch designed for applications requiring high-frequency signal routing. It operates within a broad bandwidth from 500 MHz to 3 GHz, making it suitable for various wireless communication standards including 802.11a/b/g/WiFi, 802.16/WiMax, and WLAN.
Key electrical characteristics include a low insertion loss of 0.6 dB and a typical off-isolation of 20 dB. The switch supports a P1dB of 32 dBm and an IP3 of 60 dBm, ensuring robust performance in demanding RF environments. It operates with a supply current of 20 uA and is controlled by voltages ranging from 2.5 V to 5.3 V.
Packaged in a compact 6-TSSOP, SC-88, or SOT-363 surface-mount configuration, the UPG2179TB-E4-A is designed for efficient PCB integration. It operates reliably within a temperature range of -45°C to +85°C. The component is constructed with GaAs technology and features a reflective topology.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6-TSSOP, SC-88, SOT-363 surface-mount package.
-45°C to +85°C.
500 MHz to 3 GHz.
0.6 dB.
20 dB typical.
2.5 V to 5.3 V.
GaAs.
