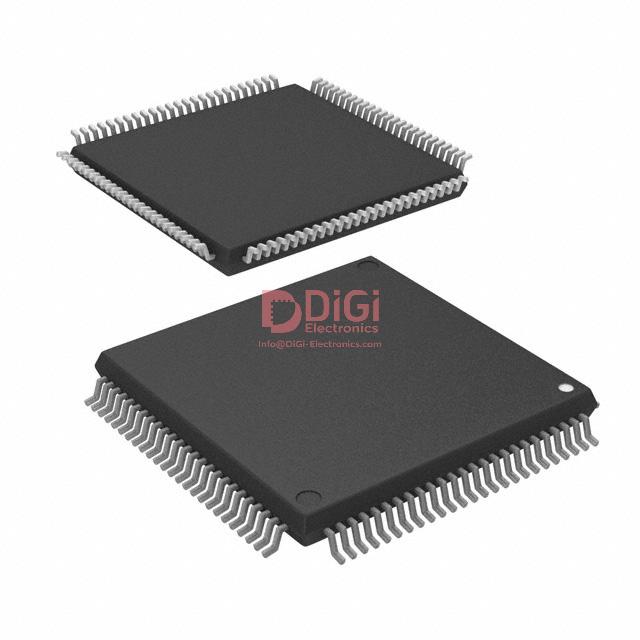

UPD78F1166AGC-UEU-AX The Renesas UPD78F1166AGC-UEU-AX is a 16-bit microcontroller from the 78K0R/Kx3 series. It offers 256KB of FLASH program memory and operates at 20MHz.
Mfr Part #:

UPD78F1166AGC-UEU-AX

Available from 1 distributors
Mfr Name: Renesas
Renesas
The Renesas UPD78F1166AGC-UEU-AX is a 16-bit microcontroller from the 78K0R/Kx3 series. It offers 256KB of FLASH program memory and operates at 20MHz.
✓ Total Stock: 1,200 pcs
$ Price Range: $6.40

UPD78F1166AGC-UEU-AX Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
1,200 pcs
On Request
1200 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

UPD78F1166AGC-UEU-AX Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
Mounting Type
Number of I
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Tape & Reel
Voltage
View Similar Products (0)

UPD78F1166AGC-UEU-AX Description

Short technical summary and product information.

This Renesas UPD78F1166AGC-UEU-AX is a 16-bit microcontroller belonging to the 78K/0R core family and the 78K0R/Kx3 series. It features a clock speed of 20MHz and is equipped with 256KB of FLASH program memory and 12KB of RAM.



Key electrical specifications include a wide supply voltage range of 1.8V to 5.5V and 83 I/O lines. It supports various connectivity options such as 3-Wire SIO, I2C, LINbus, and UART/USART, along with peripherals like DMA, LVD, POR, PWM, and WDT. Data conversion is handled by 16x10-bit A/D converters and 2x8-bit D/A converters.



The microcontroller is housed in a 100-LQFP package and utilizes a surface mount type for installation. It operates within a temperature range of -40°C to 85°C (TA). The internal oscillator type ensures stable operation.

UPD78F1166AGC-UEU-AX Quick Information

Product Type: Microcontroller
Series: 78K0R/Kx3
Canonical Name: Renesas UPD78F1166AGC-UEU-AX 16-Bit Microcontroller
Subcategory: Embedded

UPD78F1166AGC-UEU-AX Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

UPD78F1166AGC-UEU-AX Estimated Pricing

Qty Low High
1+ $6.40 $6.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

UPD78F1166AGC-UEU-AX Features

  • 16-Bit 78K/0R Core Processor.
  • 20MHz operating speed.
  • 256KB FLASH program memory.
  • 12KB RAM.
  • 1.8V to 5.5V supply voltage.

UPD78F1166AGC-UEU-AX Applications

  • Suitable for embedded control systems.
  • Ideal for applications requiring I2C communication.
  • Supports LINbus for automotive networking.
  • Features DMA for efficient data transfer.

UPD78F1166AGC-UEU-AX FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the UPD78F1166AGC-UEU-AX?

The device operates within a voltage range of 1.8V to 5.5V.

What package type does the UPD78F1166AGC-UEU-AX come in?

It comes in a 100-LQFP surface mount package.

What is the operating temperature range for this microcontroller?

-40°C to 85°C.

Is the UPD78F1166AGC-UEU-AX RoHS compliant?

Yes, it is RoHS3 compliant.
