| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
331 pcs
|
331 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Fault Protection | |
| Features | |
| Input Type | |
| Interface | |
| Mounting Type | |
| Number of Outputs | |
| Output Configuration | |
| Output Type | |
| Ratio | |
| Rds On (Typ) | |
| Supplier Device Package | |
| Switch Type | |
| Voltage | |
| Voltage Supply |
The Renesas UPD166007T1F-E1-AY is a high-side N-Channel power distribution switch and load driver designed for general-purpose applications. It features a robust design capable of handling a maximum output current of 30A and operates with a load voltage range of 8V to 18V.
Key electrical characteristics include a low typical Rds On of 8mOhm and an input that is non-inverting. The device is configured for high-side switching and utilizes an On/Off interface for control. It incorporates essential fault protection mechanisms, including fixed current limiting and over-temperature protection, along with an auto-restart feature.

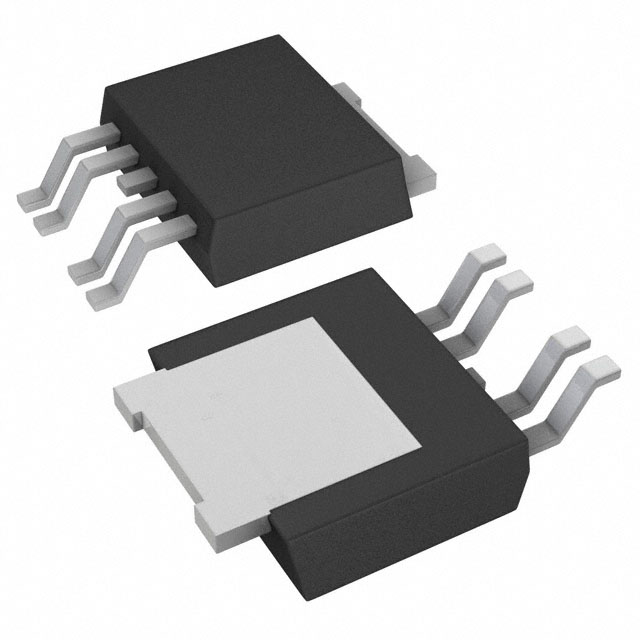

Packaged in a surface-mount TO-252 (MP-3ZK) package, the UPD166007T1F-E1-AY is suitable for various electronic systems. The supply voltage is not required for operation. This component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The load voltage range is 8V to 18V.
The maximum output current is 30A.
The typical on-resistance is 8mOhm.
The device is available in a TO-252-5 (DPak) package, also known as TO-252 (MP-3ZK).
The device includes fixed current limiting and over-temperature protection with auto-restart.
It has a single output.
The interface is on/off with non-inverting input.
