| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
247 pcs
|
247 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Shielding | |
| Tolerance | |
| Type | |
| Width |

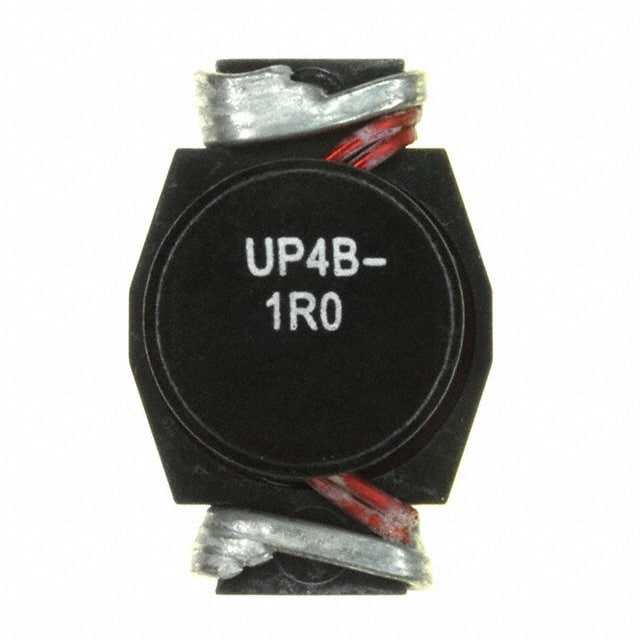

The Eaton UP4B-1R0-R is a fixed inductor from the UP4B series, designed for various electronic applications. It offers an inductance value of 1 µH with a tolerance of ±20% and a maximum DC resistance of 2.3 mOhm.
This inductor has a high current rating of 17.3A and a maximum current capacity of 37.3A. It operates within a temperature range of -40°C to 85°C. The component is constructed with a ferrite material and features a drum core, wirewound type construction.
Designed for surface mounting, the UP4B-1R0-R has dimensions of 22.10mm in length, 15.00mm in width, and 7.87mm in height. It is unshielded, making it suitable for applications where electromagnetic interference is managed externally or not a primary concern.
Compliance information indicates RoHS3 compliance and an MSL 1 rating. The REACH status is unaffected. This part is classified as a nonstandard package type.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.18 | $0.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 1 µH.
The current rating is 17.3 A.
The maximum DC resistance is 2.3 mOhm.
The operating temperature range is -40°C to 85°C.
It is a surface mount component.
