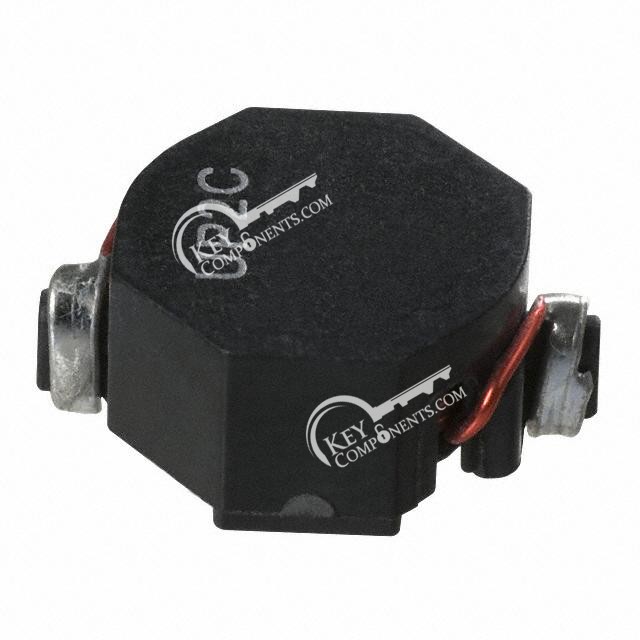

UP2C-6R8 The Eaton - Electronics Division UP2C-6R8 is a wirewound fixed inductor with 6.8 µH inductance and a current rating of 4.42A. It is designed for surface mount applications.
Mfr Part #:

UP2C-6R8

Available from 1 distributors
Mfr Name: Eaton - Electronics Division
Eaton - Electronics Division
The Eaton - Electronics Division UP2C-6R8 is a wirewound fixed inductor with 6.8 µH inductance and a current rating of 4.42A. It is designed for surface mount applications.
✓ Total Stock: 900 pcs
$ Price Range: $0.18

UP2C-6R8 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
900 pcs
On Request
900 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

UP2C-6R8 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Core Material
Current Rating
DC Resistance
Dimensions
Failure Rate
Height (Max)
Inductance
Mounting Type
Operating Temperature
Shielding
Tolerance
Type
View Similar Products (0)

UP2C-6R8 Description

Short technical summary and product information.

The Eaton - Electronics Division UP2C-6R8 is a wirewound fixed inductor from the UNI-PAC™ 2C series. It offers an inductance value of 6.8 µH with a tolerance of ±20% and a nominal current rating of 4.42A. The saturation current is rated at 4.82A, with a low DC resistance of 18 mOhm.



This inductor features a ferrite core and an unshielded construction. It operates within a temperature range of -40°C to 85°C. The component is designed for surface mounting and comes in a nonstandard package.



Its dimensions are 12.90mm x 9.40mm with a maximum height of 5.20mm. The UP2C-6R8 is suitable for various electronic applications requiring stable inductance and current handling capabilities.

UP2C-6R8 Quick Information

Product Type: Fixed Inductor
Series: UNI-PAC™ 2C
Canonical Name: Eaton - Electronics Division UP2C-6R8 Wirewound Fixed Inductor
Subcategory: Fixed Inductor

UP2C-6R8 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

UP2C-6R8 Estimated Pricing

Qty Low High
1+ $0.18 $0.18

Estimated market price range - modelled values for guidance only, not live distributor offers.

UP2C-6R8 Features

  • Wirewound ferrite core fixed inductor.
  • 6.8 µH inductance with ±20% tolerance.
  • Rated for 4.42A current and 4.82A saturation.
  • Low 18 mOhm DC resistance.
  • Surface mountable nonstandard package.

UP2C-6R8 Applications

  • Suitable for power filtering circuits.
  • Used in signal conditioning applications.
  • Ideal for compact electronic designs.
  • Component for DC-DC converters.

UP2C-6R8 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance of the UP2C-6R8?

6.8 µH at 100 kHz.

What is the rated current of the UP2C-6R8?

4.42 A.

What is the DC resistance of the UP2C-6R8?

18 mOhm.

What is the saturation current of the UP2C-6R8?

4.82 A.

What is the operating temperature range of the UP2C-6R8?

-40°C to 85°C.

What is the inductance tolerance of the UP2C-6R8?

±20%.

What is the package size of the UP2C-6R8?

12.90mm x 9.40mm surface mount, 5.20mm height.
