| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
245 pcs
|
245 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Core Material | |
| Current Rating | |
| DC Resistance | |
| Inductance | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Shielding | |
| Supplier Device Package | |
| Tolerance | |
| Type |

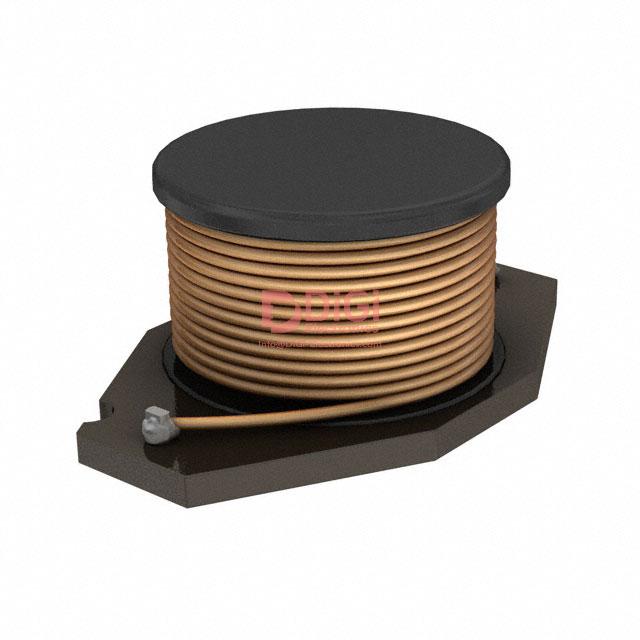

The Eaton UP2-470 is a fixed inductor designed for surface mount applications. It features a wirewound drum core construction and operates within a temperature range of -40°C to 85°C.
This inductor provides an inductance value of 47 µH with a tolerance of ±20%, tested at 100 kHz. It has a current rating of 2 A and a maximum DC resistance of 160mΩ. The shielding is unshielded.
Key specifications include a 47 µH inductance, 2 A current rating, and ±20% tolerance. The component is suitable for various electronic circuits requiring stable inductance.
Designed for ease of integration into modern electronics, the UP2-470 is packaged in bulk for surface mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.18 | $0.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The UP2-470 has a nominal inductance of 47 µH at 100 kHz with ±20% tolerance.
It is rated for a continuous DC current of 2 A.
The maximum DC resistance is 160 milliohms.
It operates from -40°C to +85°C.
No, it is unshielded.
It is supplied in bulk packaging, surface mount in a nonstandard SMD package.
