| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

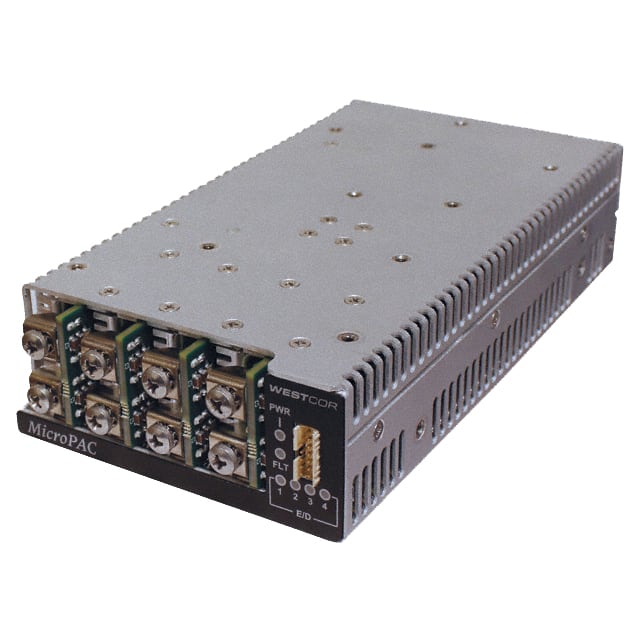

The Vicor UP1-UZZZ-CSG is a high-power AC/DC converter designed for demanding applications. It delivers up to 1200W of power with a 28V output voltage and accepts a universal input voltage range of 85 to 264 VAC. This converter boasts high efficiency up to 92% and a power density of 25 W/In³.
Designed for reliability, the UP1-UZZZ-CSG operates within a temperature range of -20°C to 65°C with derating. Its mechanical dimensions are 189.2mm x 101.6mm x 43.7mm, and it features a chassis mount type for secure installation. The unit is enclosed for protection and supports features like DC input capability, load sharing, remote sense, and a standby output.
This AC/DC converter is suitable for ITE (Commercial) applications and carries approval agency certifications including CE, cTUVus, and cURus. It offers single output configuration and includes features such as intelligent fan control and field-replaceable fans for enhanced maintainability.
The Vicor UP1-UZZZ-CSG provides 1200W of output power.
The output voltage is 28 VDC.
The input voltage range is 85 to 264 VAC.
The operating temperature range is -20°C to 65°C, with derating.
It is a chassis mount type.
The dimensions are 189.2mm x 101.6mm x 43.7mm.
Yes, it supports load sharing.
