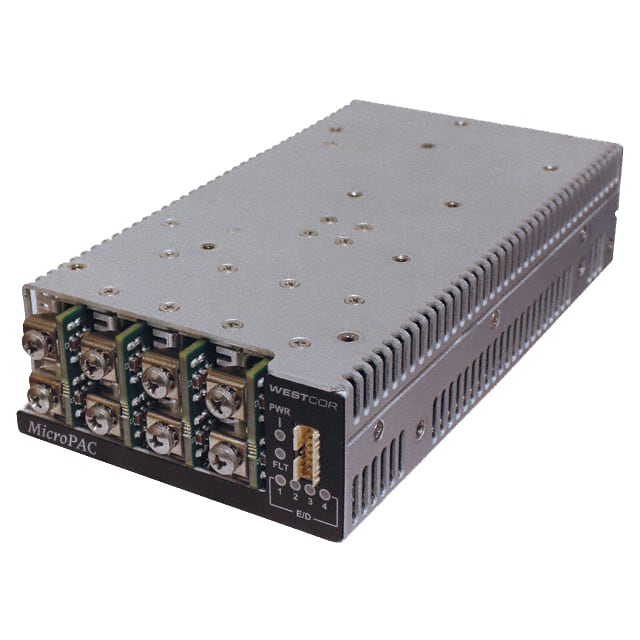

The Vicor UP1-JZZZ-CSG is a high-power AC-DC converter from the MicroPAC series, designed for demanding applications. It features a universal input voltage range of 85 to 264 VAC and provides a stable 48VDC output, capable of delivering up to 1300W of continuous power.
With a high efficiency rating of 92%, this converter minimizes energy loss and heat generation. It is built with a robust enclosed type and designed for chassis mounting, making it suitable for integration into various systems. The operating temperature range is -20°C to 65°C with derating.
Key features include DC input capability, load sharing, remote sense, and a standby output. The UP1-JZZZ-CSG is approved by CE, cTUVus, and cURus, indicating compliance with safety standards for commercial ITE applications.
85 to 264 VAC.
48V at 27.08A.
1300W.
-20°C to 65°C with derating.
Enclosed, chassis mount.
CE, cTUVus, cURus.
DC input capable, load sharing, remote sense, standby output, universal input.
