| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

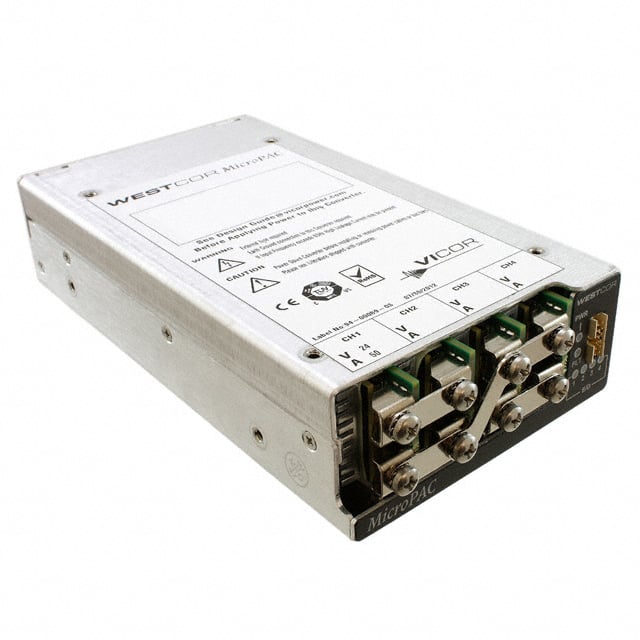

The Vicor MicroPAC UP1-FZZZ-FSG is a high-power AC-DC converter designed for demanding applications. This enclosed unit provides a 24V output at up to 1200W, with a universal input voltage range of 85 to 264 VAC. It boasts high efficiency up to 92% and a power density of 25 W/in³.
Key features include DC input capability, load sharing, remote sense, and a standby output. The converter operates within a temperature range of -20°C to 65°C with derating. Its chassis mount design and dimensions of 189.2mm x 101.6mm x 43.7mm make it suitable for integration into various systems.
Additional functionalities include over-temperature warnings and shutdowns, intelligent fan control, and isolated customer interface signals. The MicroPAC series supports output parallel and series configurations for increased power or voltage requirements, and can be configured for up to 4 isolated outputs.
The converter provides a regulated 24VDC output.
It accepts 85 to 264 VAC and 120 to 300 VDC inputs.
The device operates at up to 92% efficiency.
It utilizes an enclosed chassis mount configuration.
The unit functions reliably between -20°C and 65°C with derating.
It carries CE, cTUVus, and cURus approval agencies.
It features one primary output with capability for up to four isolated outputs.
