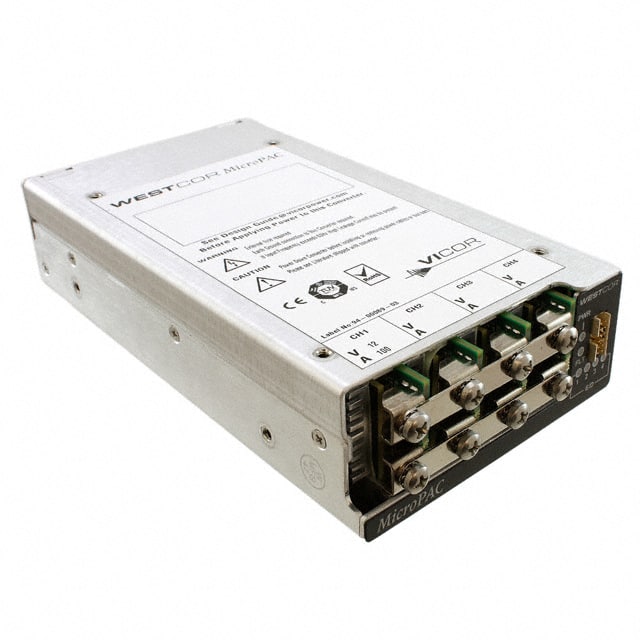

The Vicor MicroPAC UP1-DZZZ-FSG is a high-power AC-DC converter designed for demanding applications. This enclosed unit provides a single 12V output with a maximum power of 1200W.
It operates with a universal input voltage range of 85 to 264 VAC, and also supports DC input from 120 to 300 Vdc. The power supply boasts high efficiency up to 92% and a power density of 25 W/In3, making it suitable for space-constrained designs. It operates within a temperature range of -20°C to 65°C with derating.
Designed for chassis mounting, the UP1-DZZZ-FSG offers features such as load sharing, remote sense, and a standby output. Its robust construction and wide input range make it ideal for ITE (Commercial) applications requiring reliable power conversion.
Key specifications include a 100A output current, 47-63 Hz and 400 Hz input frequency options, and compliance with CE, cTUVus, and cURus agency approvals.
85-264 VAC and 120-300 VDC.
12V at 100A (1200W).
Up to 92%.
-20°C to 65°C with derating.
Chassis mount, enclosed package.
47-63 Hz and 400 Hz.
25 W/in³.
