| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

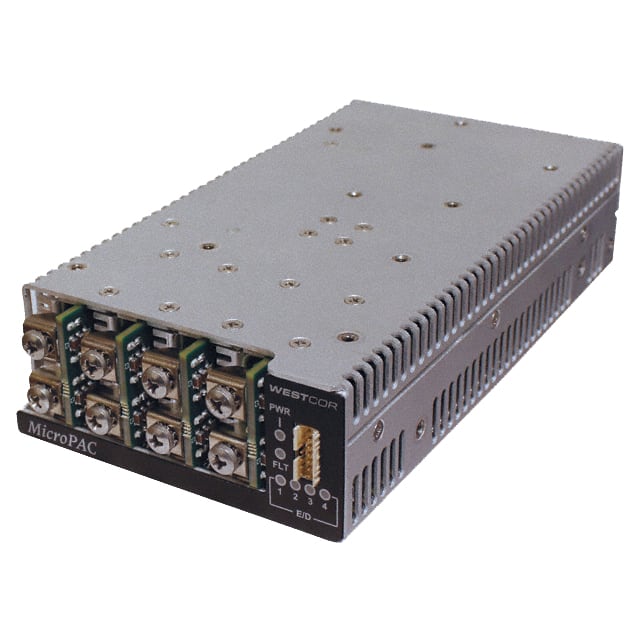

The Vicor MicroPAC UP1-DZZZ-CSG is a high-power AC-DC converter designed for demanding applications. It provides a single 12V output capable of delivering up to 100A and 1200W of continuous power.
This unit operates with a universal input voltage range of 85 to 264 VAC, making it suitable for global use. It also supports DC input from 120 to 300 Vdc. The converter boasts high efficiency up to 92% and a power density of 25 W/in³, contributing to its compact size.
Designed for chassis mounting, the UP1-DZZZ-CSG is enclosed for protection. Key features include load sharing, remote sense, a standby output, and intelligent fan control. It operates within a temperature range of -20°C to 65°C with derating.
Compliance is indicated by CE, cTUVus, and cURus agency approvals. The RoHS status is listed as RoHS3 Compliant, MSL is 1 Unlimited, and REACH status is Unaffected.
The UP1-DZZZ-CSG provides a single 12V output with a power rating of 1200W.
The converter accepts a universal input voltage range of 85 to 264 VAC and a DC input range of 120 to 300 VDC.
The operating temperature range is -20°C to 65°C, with derating applied.
This unit is designed for chassis mounting.
The RoHS status is RoHS3 Compliant.
