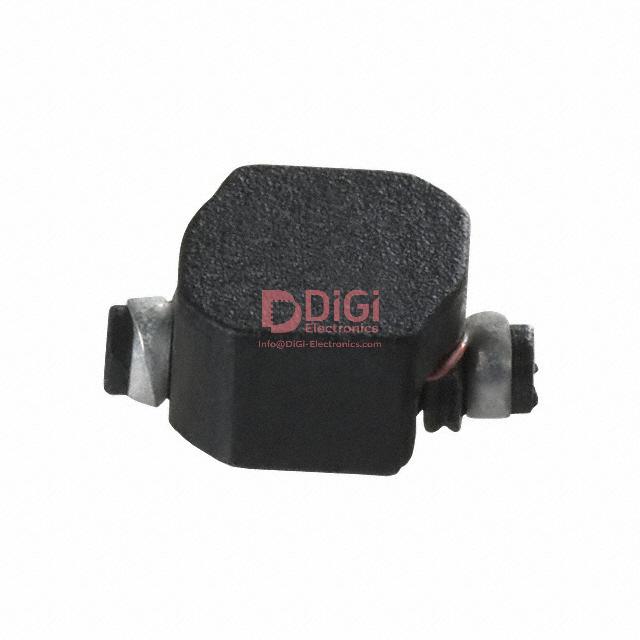

UP0.4C-4R7-R The Eaton UP0.4C-4R7-R is a fixed inductor featuring a 4.7µH inductance and a 1.55A current rating. It is designed for surface mount applications and comes in tape & reel packaging.
Mfr Part #:

UP0.4C-4R7-R

Available from 1 distributors
Mfr Name: Coiltronics
Coiltronics
The Eaton UP0.4C-4R7-R is a fixed inductor featuring a 4.7µH inductance and a 1.55A current rating. It is designed for surface mount applications and comes in tape & reel packaging.
✓ Total Stock: 1,710 pcs
$ Price Range: $0.04

UP0.4C-4R7-R Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
1,710 pcs
On Request
1710 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

UP0.4C-4R7-R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Core Material
Current Rating
Current Saturation
DC Resistance
Inductance
Mounting Type
Operating Temperature
SVHC Present
Shielding
Tolerance
Type
View Similar Products (0)

UP0.4C-4R7-R Description

Short technical summary and product information.

The Eaton UP0.4C-4R7-R is a wirewound, unshielded drum core fixed inductor. It offers an inductance value of 4.7µH with a tolerance of ±20% and a maximum current rating of 1.55A. The DC resistance (DCR) is a maximum of 88mOhm.



This inductor operates within a temperature range of -40°C to 85°C and is tested for inductance at 100 kHz. It features a surface mount type and is supplied in tape & reel packaging, making it suitable for automated assembly processes.



The core material is ferrite, and the series is UNI-PAC™ 0.4C. This component is designed for various electronic applications requiring stable inductance and current handling capabilities.

UP0.4C-4R7-R Quick Information

Product Type: Fixed Inductor
Series: UNI-PAC™ 0.4C
Canonical Name: Eaton UP0.4C-4R7-R Fixed Inductor
Subcategory: Wirewound Inductor

UP0.4C-4R7-R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

UP0.4C-4R7-R Estimated Pricing

Qty Low High
1+ $0.04 $0.04

Estimated market price range - modelled values for guidance only, not live distributor offers.

UP0.4C-4R7-R Features

  • Wirewound unshielded drum core inductor.
  • 4.7µH inductance with ±20% tolerance.
  • Rated for 1.55A maximum current.
  • Surface mount, tape & reel packaging.
  • Ferrite core material for stable performance.

UP0.4C-4R7-R Applications

  • Suitable for general purpose filtering.
  • Used in power supply circuits.
  • Ideal for signal conditioning.
  • Applicable in various electronic assemblies.

UP0.4C-4R7-R FAQs

6 frequently asked questions generated from this part’s specifications.
What is the inductance of the UP0.4C-4R7-R?

The inductance is 4.7 µH.

What is the current rating for the UP0.4C-4R7-R?

The current rating is 1.55 A.

What is the DC Resistance (DCR) of this inductor?

The maximum DC Resistance is 88mOhm.

What is the operating temperature range for the UP0.4C-4R7-R?

The operating temperature range is -40°C to 85°C.

How is the UP0.4C-4R7-R inductor mounted?

It is a surface mount component.

What type of core does the UP0.4C-4R7-R use?

It uses a ferrite core.
