| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Breaking Capacity @ Rated Voltage | |
| Current Rating (Amps) | |
| Fuse Type | |
| Halogen Free | |
| Height | |
| Length | |
| Melting I²t | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation | |
| Response Time | |
| Voltage Rating | |
| Width |

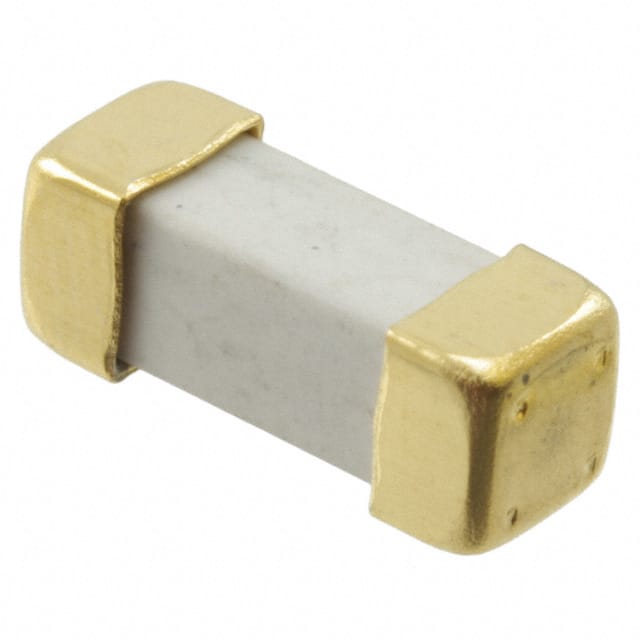

The Bel Fuse UMTS 2 is a time lag (slow blow) surface mount fuse rated for 2A at 250VAC. It is part of the UMTS series of ceramic fuses designed for overcurrent protection in a variety of electronic equipment.
Electrical characteristics include a breaking capacity of 150A at 250VAC and 100A at 350VAC. The fuse has a typical cold resistance of 0.043 ohms, maximum voltage drop of 0.145V at rated current, and maximum power dissipation of 0.43W. The melting I²t is 9.2 A²s at 10 times rated current.
The fuse is housed in a 2-SMD square end block package with dimensions 12.10mm x 4.45mm x 4.45mm. It is designed for surface mount assembly and is supplied in tape and reel packaging for automated placement. The operating temperature range is -55°C to 125°C.
Typical applications include lighting systems, LCD monitors, office electronics, industrial equipment, medical equipment, and power supplies. The fuse is RoHS 2 compliant, halogen free, and lead free.
The UMTS 2 is rated for 2A.
The voltage rating is 250VAC per the datasheet.
The breaking capacity is 150A at 250VAC and 100A at 350VAC.
The response time is slow blow (time lag).
The package is 2-SMD, square end block.
The operating temperature range is -55°C to 125°C.
The melting I²t is 9.2 A²s at 10 times rated current.
